SEN_00046

Pressure Sensors Transducers Overview

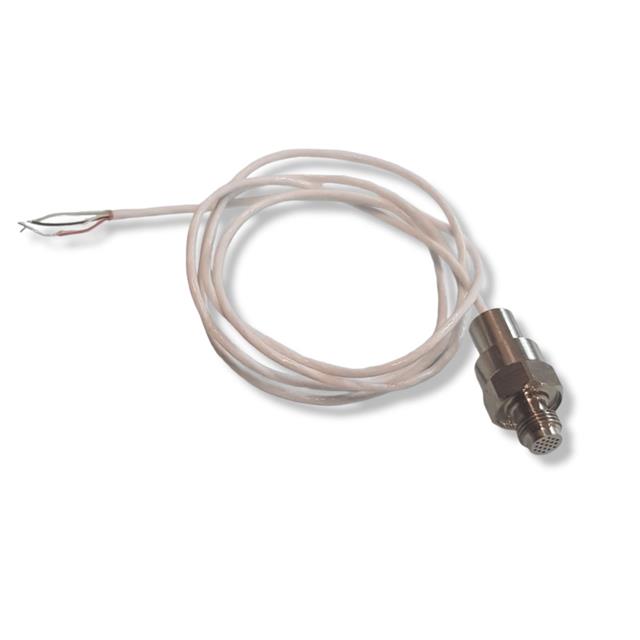

The SENSORADE SA SEN_00046 is an ultra-miniaturized absolute pressure sensor designed for harsh environments. It features a cylindrical threaded package with a port size of male-10-32 UNF. The device operates within a pressure range of 0 to 3000 PSI (20684.27 kPa) and withstands temperatures from -10°C to 100°C. It provides an analog voltage output ranging from 100 mV to 190 mV, powered by a 5V supply. The unit offers high accuracy with a tolerance of -0.6% to 0.4%. This component is suitable for industrial automation and aeronautics applications requiring compact sensing solutions.

Pressure Sensors Transducers Feature Summary

• Ultra-miniaturized design optimized for space-constrained installations in harsh environments
• High-pressure capability rated up to 3000 PSI with robust cylindrical threaded construction
• Wide operating temperature range supporting thermal stability from -10°C to 100°C
• Precision analog voltage output ensuring reliable signal transmission for critical systems

Pressure Sensors Transducers Applications

• Industrial Automation
• Aeronautics
• Harsh Environment Monitoring

Pressure Sensors Transducers Procurement Notes

Verify the specific part number SEN_00046 against official SENSORADE SA documentation to confirm compatibility with system requirements. Ensure that the operating pressure and temperature limits align with the application environment. Check for any required accessories or mounting hardware specified in the datasheet. Confirm RoHS compliance status if environmental regulations apply. Validate electrical interface parameters before integration into the final assembly.

Pressure Sensors Transducers Selection Notes

Select this model when space constraints require an ultra-miniaturized form factor combined with high-pressure resistance. Consider the analog voltage output range and power supply requirements during circuit design. Evaluate the operating temperature range to ensure suitability for the intended thermal conditions. Compare accuracy specifications against system precision needs. Verify thread compatibility with existing fluid or gas connection points.

Pressure Sensors Transducers Part Context

The SEN_00046 belongs to SENSORADE SA's portfolio of unique ultra-miniaturized pressure sensors. These components are engineered specifically for demanding applications where size and durability are critical. The MHP-ST series typically includes various pressure ratings, with this model focusing on the 3000 PSI range. SENSORADE SA is a Belgian company specializing in sensors for high-temperature and harsh environments.

Pressure Sensors Transducers Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Users should consult official SENSORADE SA resources for potential cross-references or updated models. Direct replacement requires matching all electrical and mechanical specifications precisely.
