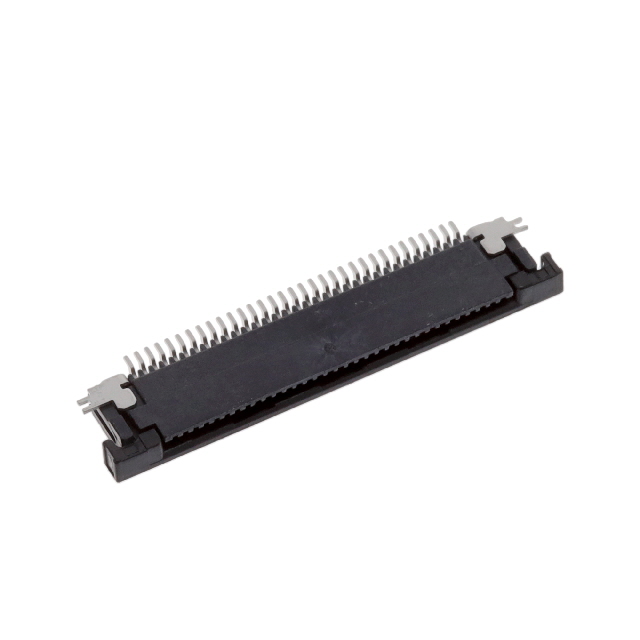

SFV33R-1STE9HLF

SFV33R-1STE9HLF is listed in the FFC, FPC (Flat Flexible) Connector Assemblies range at ChipApex. The manufacturer field lists Amphenol ICC (FCI). Its product description is CONN FFC BOTTOM 33POS 0.5MM R/A. Review the specifications below when checking this part for your BOM.

FFC, FPC (Flat Flexible) Connector Assemblies specifications for SFV33R-1STE9HLF

• Description：CONN FFC BOTTOM 33POS 0.5MM R/A
• Series：SFV-R
• Mfr：Amphenol ICC (FCI)
• Package：Tape & Reel (TR),Cut Tape (CT)
• Flat Flex Type：FFC, FPC
• Mounting Type：Surface Mount, Right Angle
• Connector/Contact Type：Contacts, Bottom
• Number of Positions：33
• Pitch：0.020" (0.50mm)
• Termination：Solder
• FFC, FCB Thickness：0.30mm, 0.33mm
• Height Above Board：0.071" (1.80mm)
• Locking Feature：Slide Lock
• Cable End Type：Straight, Tapered
• Contact Material：Phosphor Bronze
• Contact Finish：Tin
• Housing Material：Liquid Crystal Polymer (LCP), Glass Filled, Halogen Free
• Actuator Material：Polyphenylene Sulfide (PPS), Glass Filled, Halogen Free
• Features：Solder Retention, Zero Insertion Force (ZIF)
• Voltage Rating：50V
• Operating Temperature：-55°C ~ 105°C
• Material Flammability Rating：UL94 V-0

FFC, FPC (Flat Flexible) Connector Assemblies datasheet and documents for SFV33R-1STE9HLF
