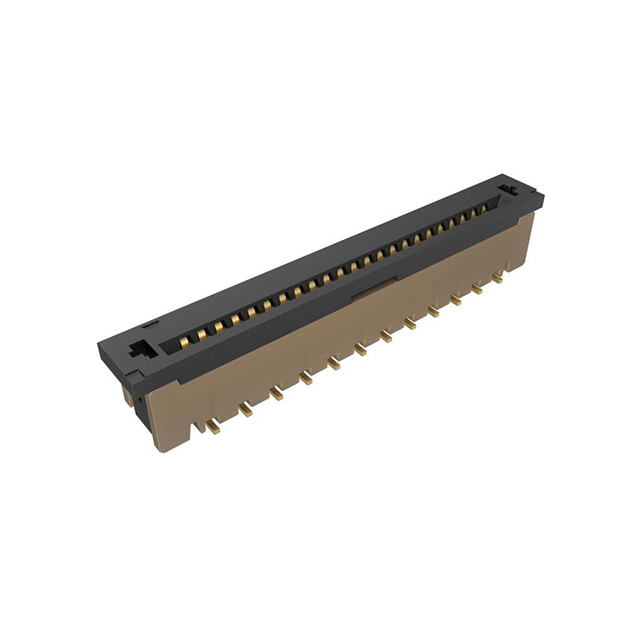

SFW23S-2STAE1LF is listed in the FFC, FPC (Flat Flexible) Connector Assemblies range at ChipApex. The manufacturer field lists Amphenol ICC (FCI). Its product description is CONN FPC VERT 23POS 1MM SMD. Review the specifications below when checking this part for your BOM.
FFC, FPC (Flat Flexible) Connector Assemblies specifications for SFW23S-2STAE1LF
- Description：CONN FPC VERT 23POS 1MM SMD
- Series：SFW
- Mfr：Amphenol ICC (FCI)
- Package：Tape & Reel (TR)
- Flat Flex Type：FPC
- Mounting Type：Surface Mount
- Connector/Contact Type：Contacts, Vertical - 1 Sided
- Number of Positions：23
- Pitch：0.039" (1.00mm)
- Termination：Solder
- FFC, FCB Thickness：0.30mm
- Height Above Board：0.209" (5.30mm)
- Locking Feature：Slide Lock
- Cable End Type：Tapered
- Contact Material：Phosphor Bronze
- Contact Finish：Gold
- Housing Material：Thermoplastic, Glass Filled
- Actuator Material：Thermoplastic, Glass Filled
- Features：Zero Insertion Force (ZIF)
- Voltage Rating：100V
- Operating Temperature：-55°C ~ 85°C
- Material Flammability Rating：UL94 V-0
FFC, FPC (Flat Flexible) Connector Assemblies datasheet and documents for SFW23S-2STAE1LF
