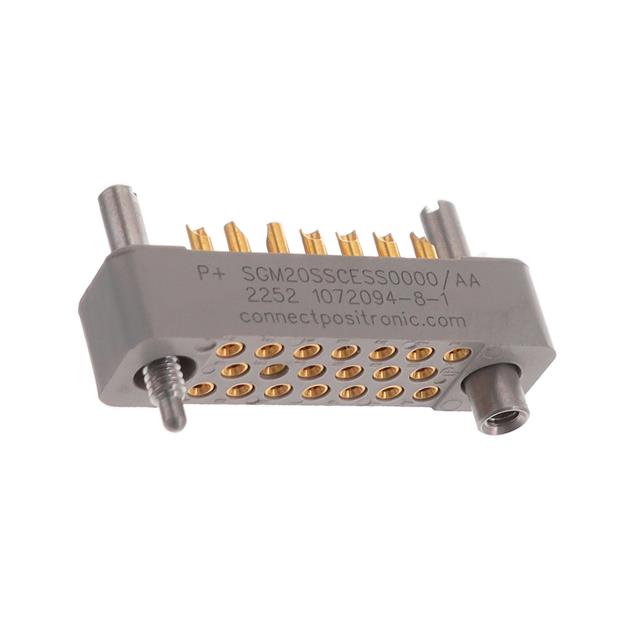

Specialized Backplane Connectors SGM20SSCESS0000/AA product image

SGM20SSCESS0000/AA

$104.58

Description：D-SUB
Series：SGM
Mfr：Amphenol Positronic
Package：Tray

SKU:68e2584b6dfc Category: Specialized Backplane Connectors Brand: Amphenol Positronic

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

SGM20SSCESS0000/AA is listed in the Specialized Backplane Connectors range at ChipApex. The manufacturer field lists Amphenol Positronic. Its product description is D-SUB. Review the specifications below when checking this part for your BOM.

Specialized Backplane Connectors specifications for SGM20SSCESS0000/AA

Description：D-SUB
Series：SGM
Mfr：Amphenol Positronic
Package：Tray
Connector Usage：-
Connector Type：Receptacle, Female Sockets
Connector Style：-
Number of Positions：20
Number of Positions Loaded：All
Pitch：-
Number of Rows：3
Number of Columns：-
Mounting Type：Through Hole
Termination：Solder Cup
Contact Layout, Typical：-
Features：Mating Guide
Contact Finish：Gold
Contact Finish Thickness：15.0µin (0.38µm)
Color：Gray
