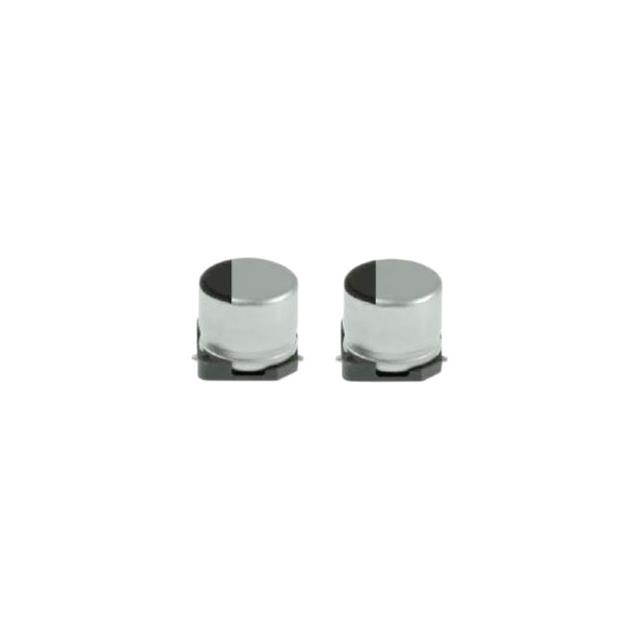

SHT6.3V101M-F55

SHT6.3V101M-F55 is listed in the Aluminum Electrolytic Capacitors range at ChipApex. The manufacturer field lists Meritek. Its product description is CAP ALUM 100UF 20% 6.3V SMD. Review the specifications below when checking this part for your BOM.

Aluminum Electrolytic Capacitors specifications for SHT6.3V101M-F55

• Description：CAP ALUM 100UF 20% 6.3V SMD
• Series：SHT
• Mfr：Meritek
• Package：Tape & Reel (TR)
• Capacitance：100 µF
• Tolerance：±20%
• Voltage - Rated：6.3 V
• ESR (Equivalent Series Resistance)：-
• Lifetime @ Temp.：1000 Hrs @ 105°C
• Operating Temperature：-55°C ~ 105°C
• Polarization：Polar
• Ratings：-
• Applications：General Purpose
• Ripple Current @ Low Frequency：65 mA @ 120 Hz
• Ripple Current @ High Frequency：-
• Lead Spacing：-
• Size / Dimension：0.248" Dia (6.30mm)
• Height - Seated (Max)：0.217" (5.50mm)
• Surface Mount Land Size：0.260" L x 0.260" W (6.60mm x 6.60mm)
• Mounting Type：Surface Mount
• Package / Case：Radial, Can - SMD
• Impedance：-

Aluminum Electrolytic Capacitors datasheet and documents for SHT6.3V101M-F55
