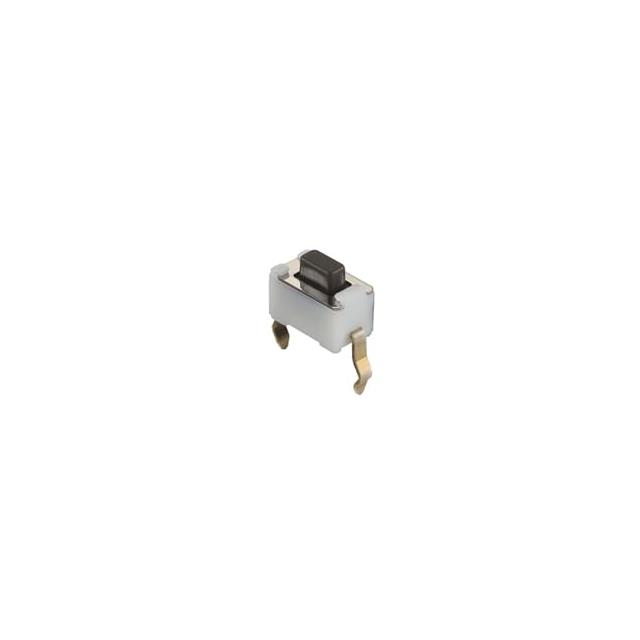

SKHLADA010

SKHLADA010 is listed in the Tactile Switches range at ChipApex. The manufacturer field lists Alps Alpine. Its product description is SWITCH TACTILE SPST-NO 0.05A 12V. Review the specifications below when checking this part for your BOM.

Tactile Switches specifications for SKHLADA010

• Description：SWITCH TACTILE SPST-NO 0.05A 12V
• Series：SKHL
• Mfr：Alps Alpine
• Package：Bulk
• Circuit：SPST-NO
• Switch Function：Off-Mom
• Contact Rating @ Voltage：0.05A @ 12VDC
• Actuator Type：Rectangular Button
• Mounting Type：Through Hole
• Actuator Height off PCB, Vertical：5.00mm
• Actuator Length, Right Angle：-
• Actuator Orientation：Top Actuated
• Termination Style：PC Pin
• Outline：6.00mm x 3.50mm
• Illumination：Non-Illuminated
• Illumination Type, Color：-
• Illumination Voltage (Nominal)：-
• Operating Force：160gf
• Ingress Protection：-
• Features：-
• Operating Temperature：-40°C ~ 90°C

Tactile Switches datasheet and documents for SKHLADA010
