SL 10 SMD 078 9 Z B TR

Headers, Male Pins Overview

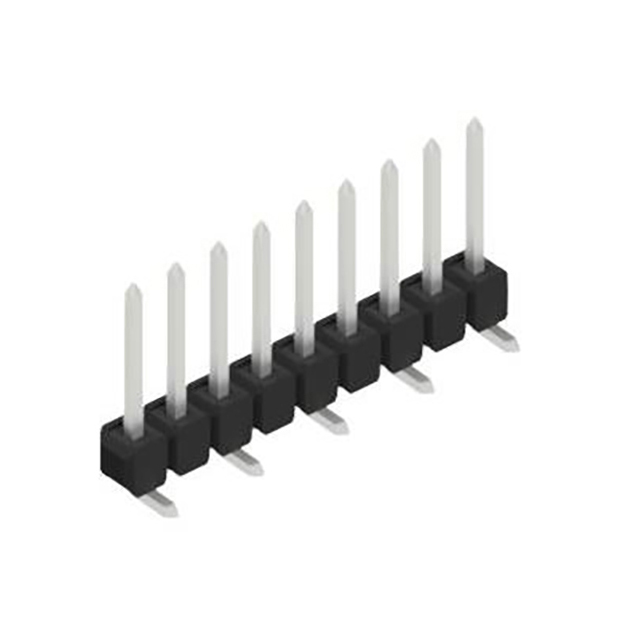

The SL 10 SMD 078 9 Z B TR is a surface mount board connector manufactured by Fischer Elektronik. It features a single row of nine male contacts with a 2.54 mm (0.100 inch) pitch. The housing utilizes polyamide insulation, and the contacts are tin-plated copper alloy. Designed for straight PCB mounting, it operates within a temperature range of -40°C to 163°C. The component is RoHS compliant and lead-free, intended for reliable electrical interconnection in compact electronic assemblies.

Headers, Male Pins Feature Summary

• Surface mount design for automated pick-and-place assembly
• Tin-plated contacts for corrosion resistance
• Single-row male header configuration
• Polyamide insulation for thermal stability

Headers, Male Pins Applications

• Board-to-board interconnections
• Wire-to-board connections
• Compact consumer electronics assemblies
• Industrial control modules

Headers, Male Pins Procurement Notes

Verify that the ordering suffix 'TR' corresponds to tape-and-reel packaging as specified in the manufacturer documentation. Confirm the contact finish is tin-plated ('Z') rather than gold-plated ('G'). Ensure the part number matches the specific pin count and series designation to avoid compatibility issues with mating connectors.

Headers, Male Pins Selection Notes

Select this component when a low-profile, single-row surface mount header is required. The tin plating offers cost-effective conductivity suitable for general applications. Verify that the PCB footprint aligns with the 2.54 mm pitch and that the operating temperature range meets the environmental requirements of the target device.

Headers, Male Pins Part Context

This part belongs to the Fischer Elektronik SL 10 SMD series, which provides various pin counts and contact finishes. The '078' indicates the specific body length or style within this family. These headers are designed for high-density applications where space constraints necessitate surface mount technology over through-hole alternatives.

Headers, Male Pins Replacement Considerations

Compatible substitutes include other SL 10 SMD variants from Fischer Elektronik with matching pin counts and pitch. Generic equivalents must maintain the 2.54 mm spacing and surface mount compatibility. Verify that alternative parts support the same current rating and temperature specifications.
