SL 10 SMD 104 6 S B TR

Headers, Male Pins Overview

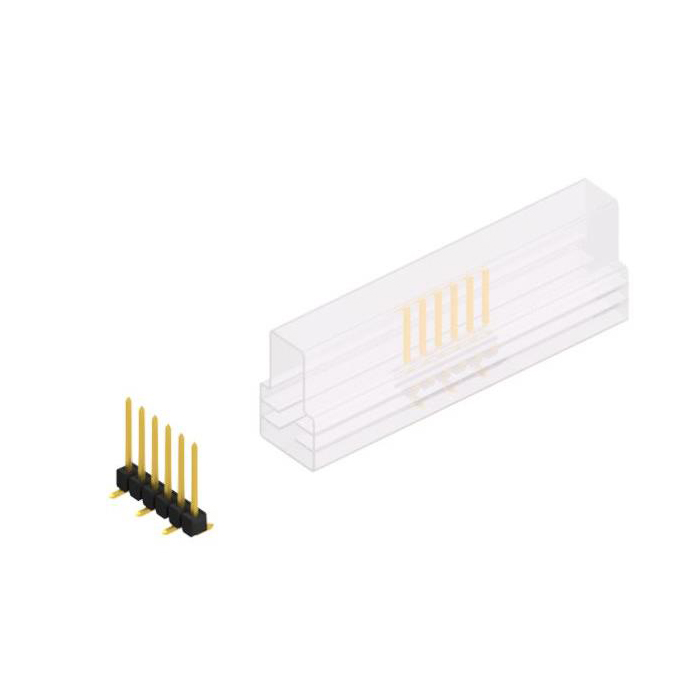

The Fischer Elektronik SL 10 SMD 104 6 S B TR is a surface mount header connector featuring six positions with a 2.54 mm pitch. It utilizes a two-row configuration and employs push-pull locking mechanisms for secure attachment. The contacts are gold-plated on the mating interface and tin-plated on the tail, ensuring reliable conductivity. Designed for high-temperature environments, it operates between -40°C and +163°C. The housing is constructed from glass-filled polyamide (PA46), providing mechanical stability and flame resistance suitable for automated pick-and-place assembly processes.

Headers, Male Pins Feature Summary

• Surface mount design optimized for automated pick-and-place manufacturing
• Push-pull locking mechanism ensures secure connection retention
• Dual-contact plating: gold for mating surfaces and tin for solder tails

Headers, Male Pins Applications

• Automated PCB assembly lines requiring pick-and-place compatibility
• High-density electronic interconnects in compact devices
• Industrial control systems operating within extended temperature ranges

Headers, Male Pins Procurement Notes

Verify that the specific suffix 'B TR' corresponds to the bar magazine packaging format required for your automated assembly equipment. Confirm that the six-position count matches the circuit design requirements. Ensure the surface mount footprint aligns with the PCB layout specifications. Check that the thermal rating of +163°C meets the operational environment constraints of the final application.

Headers, Male Pins Selection Notes

Select this component when a low-profile, surface-mount header with a 2.54 mm pitch is required. The choice is driven by the need for automated assembly compatibility via bar magazine packaging. Consider the dual plating scheme if both high-conductivity mating and robust solderability are necessary. The push-pull feature is essential where vibration resistance without screws is prioritized over traditional latch styles.

Headers, Male Pins Part Context

This part belongs to the Fischer Elektronik SL 10 SMD series, which focuses on surface-mount technology solutions. The series offers various contact counts and locking options. The SL 10 designation typically indicates specific dimensional constraints and row configurations. This particular model represents a standard six-position variant within the broader family of SMD headers designed for modern electronics manufacturing.

Headers, Male Pins Replacement Considerations

Direct substitutes must match the 2.54 mm pitch, 6-position count, and surface mount profile. Verify that alternative connectors support the same push-pull locking mechanism and operate within the -40°C to +163°C range. Ensure the replacement also accommodates bar magazine handling if automation is used.
