SL 11 SMD 040 40 Z B TR

Headers, Male Pins Overview

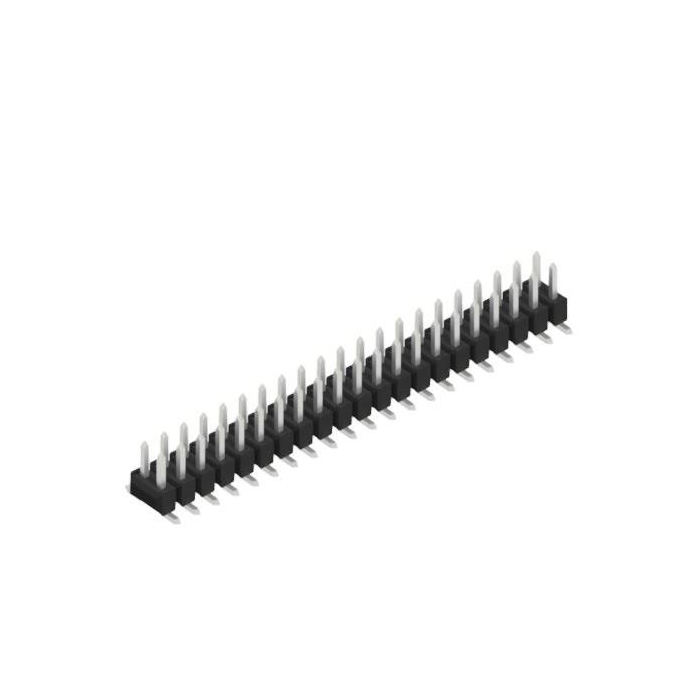

The Fischer Elektronik SL 11 SMD 040 40 Z B TR is a surface mount pin header from the SL 11 series. It features a dual-row configuration with 40 positions and a 2.54 mm pitch. The connector utilizes a straight board-to-board or wire-to-board interface. Contact materials include copper with tin plating, while the insulation body is constructed from glass-filled polyamide (PA46). The component supports an operating temperature range of -40°C to +163°C.

Headers, Male Pins Feature Summary

• Surface mount design for automated PCB assembly
• Dual-row layout providing high density connectivity
• Tin-plated contacts ensuring reliable electrical performance
• Glass-filled polyamide insulation for thermal stability

Headers, Male Pins Applications

• Board-to-board interconnections in compact electronics
• Wire-to-board connections in industrial control systems
• Signal transmission in telecommunications equipment
• Interface modules in automotive electronic units

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix against the manufacturer datasheet to confirm contact finish and packaging type. Ensure the selected variant matches the required row count and pitch specifications for the target application. Cross-reference the part number with official Fischer Elektronik documentation to validate compatibility with standard mating connectors.

Headers, Male Pins Selection Notes

Select this component when a low-profile surface mount solution is required for dual-row signal routing. Consider the 2.54 mm pitch for standard spacing requirements and the thermal rating for environments exceeding typical consumer electronics limits. Evaluate the mechanical retention needs of the surface mount footprint against vibration constraints in the final assembly.

Headers, Male Pins Part Context

This part belongs to the Fischer Elektronik SL 11 series, which offers various configurations of male pin headers. The series provides options for through-hole and surface mount technologies with different pole counts. The SL 11 line is designed for general-purpose PCB interconnects, emphasizing reliability and standardized dimensions across the product family.

Headers, Male Pins Replacement Considerations

Compatible substitutes must match the 2.54 mm pitch, dual-row structure, and 40-position count. Verify that alternative components support the same surface mount mounting style and provide equivalent thermal resistance. Ensure mating connector compatibility regarding contact geometry and housing dimensions before substitution.
