SL 2 104 2 Z

Headers, Male Pins Overview

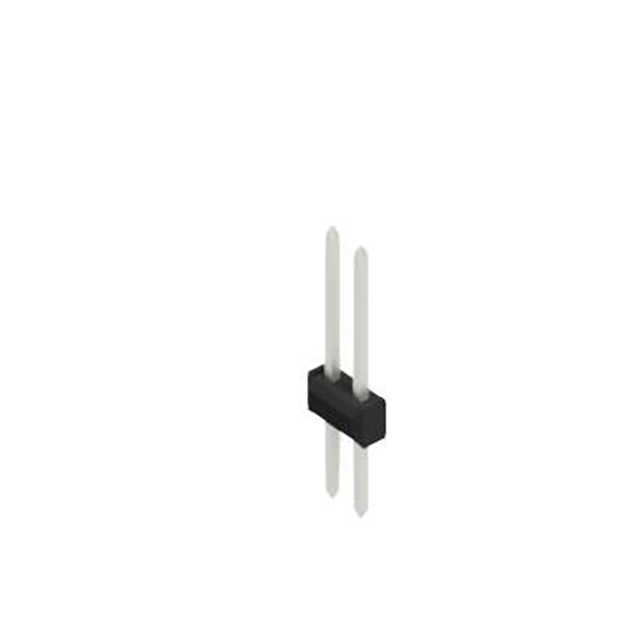

The SL 2 104 2 Z is a single-row male header connector manufactured by Fischer Elektronik. It features a 2-position configuration with a 0.100 inch (2.54 mm) pitch. Designed for through-hole mounting, the contacts are made of copper and tin-plated. The connector utilizes polyamide insulation and includes square-shaped pins with a mating contact length of 0.213 inches and a column length of 0.118 inches.

Headers, Male Pins Feature Summary

• Single-row male pin header design for PCB interconnection
• Through-hole mounting technology for secure attachment
• Tin-plated copper contacts for conductivity
• Polyamide insulation material for stability

Headers, Male Pins Applications

• General electronic circuit board interconnections
• Signal transmission in low-power applications
• Prototyping and development boards

Headers, Male Pins Procurement Notes

Verify the specific part number against official Fischer Elektronik documentation to ensure accuracy. Confirm that the two-position configuration matches the design requirements. Check datasheet specifications for thermal resistance and current ratings before integration. Ensure compatibility with mating connectors regarding pin dimensions and spacing.

Headers, Male Pins Selection Notes

Select this component when a compact, two-position male header is required for through-hole assembly. Consider the 2.54 mm pitch standard for broad compatibility with existing ribbon cables or mating sockets. Evaluate the mechanical stability provided by the polyamide housing and the reliability of tin plating for the intended environmental conditions.

Headers, Male Pins Part Context

This component belongs to the Fischer Elektronik SL series, which focuses on precision connectors for electronic assemblies. The SL 2 104 variant specifically denotes a header with defined dimensional characteristics suitable for standard PCB layouts. The 'Z' suffix typically indicates specific packaging or surface treatment details within the manufacturer's catalog structure.

Headers, Male Pins Replacement Considerations

Consult official Fischer Elektronik cross-reference lists for verified substitutes. Generic headers with matching 2.54 mm pitch may fit mechanically but require verification of contact material and insulation rating.
