SL 2 154 26 G

Headers, Male Pins Overview

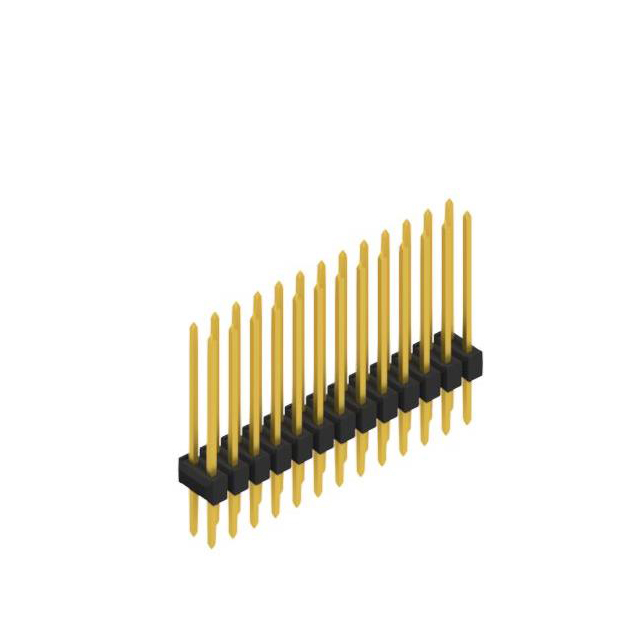

The Fischer Elektronik SL 2 154 26 G is a male pin header connector designed for through-hole mounting. It features 26 positions with a 0.100" (2.54mm) pitch and two rows of contacts. The connector utilizes gold plating on the contact surfaces, specifically nickel underplating with a minimum thickness of 0.2µm gold. The overall dimensions are 24 mm in length, 5.8 mm in width, and 15.4 mm in height. The component operates within a temperature range of -40°C to +163°C and withstands soldering temperatures of 260°C for 10 seconds.

Headers, Male Pins Feature Summary

• Precision-engineered compact design suitable for dense board layouts
• Gold-plated contacts ensure reliable electrical performance and corrosion resistance
• Through-hole straight mounting configuration for secure PCB attachment

Headers, Male Pins Applications

• Board-to-board interconnections
• Wire-to-board connections
• General electronic assembly requiring high-reliability headers

Headers, Male Pins Procurement Notes

Verify the specific part number suffix against official Fischer Elektronik documentation to confirm exact plating specifications and dimensional tolerances. Ensure that the ordering details match the required contact count and row configuration. Cross-reference the datasheet for thermal and mechanical limits before integration into final designs.

Headers, Male Pins Selection Notes

Select this component when a 26-position, 2-row male header with 2.54mm spacing is required. Consider the through-hole mounting style and gold contact finish for applications demanding durability. Evaluate the physical height constraints against the available board space and mating connector requirements.

Headers, Male Pins Part Context

This component belongs to the SL 2 series of pin headers from Fischer Elektronik. The series offers various position counts and configurations for standard electronic interconnect needs. The SL 2 154 variant specifically provides a robust solution for stacking or connecting circuit boards with precise alignment.

Headers, Male Pins Replacement Considerations

Compatible substitutes include other Fischer Elektronik headers within the SL 2 series with matching 26-pin, 2-row specifications. Verify that alternative parts maintain the same 2.54mm pitch and through-hole mounting characteristics to ensure mechanical and electrical compatibility.
