SL 22 214 26 S

Headers, Male Pins Overview

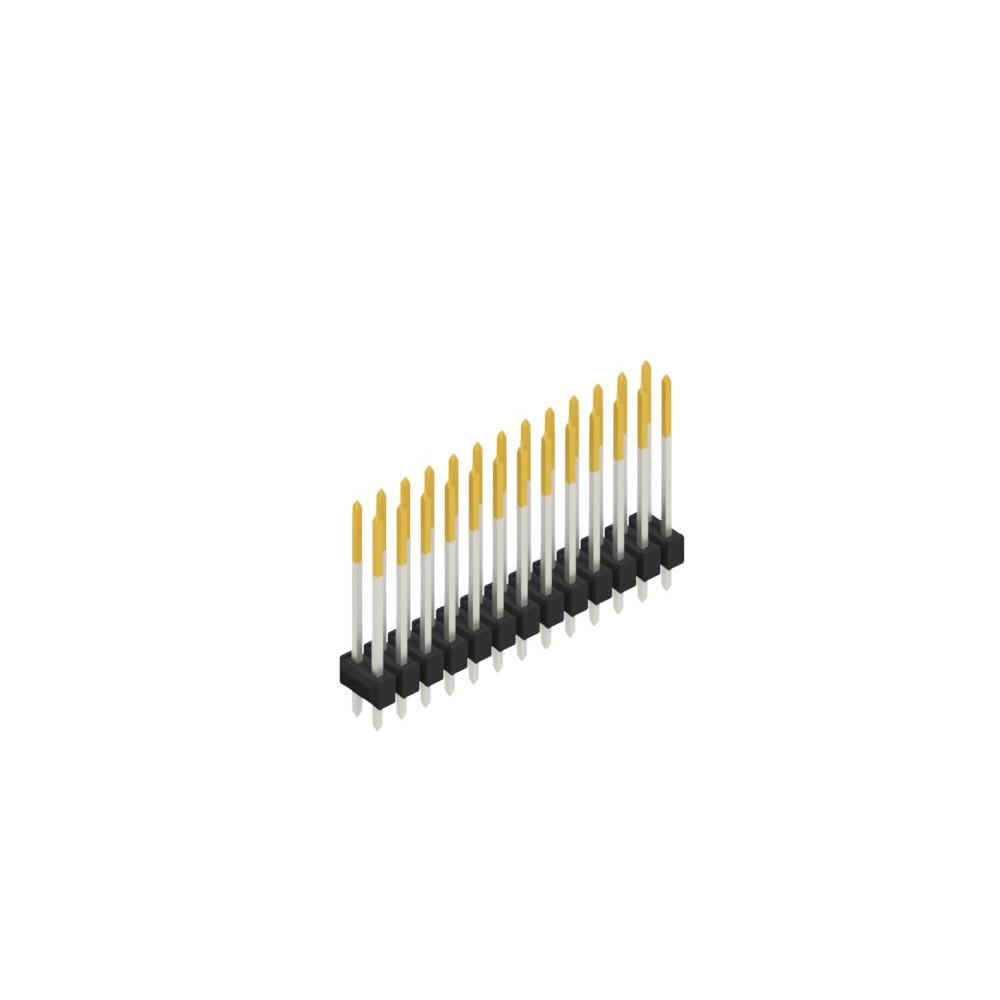

The Fischer Elektronik SL 22 214 26 S is a male pin header connector designed for through-hole mounting. It features 26 positions arranged in two rows with a 0.100" (2.54mm) pitch and 0.100" row spacing. The contacts are constructed from CuSn alloy and feature selective gold plating. The connector has an overall length of 21.4 mm, a column length of 3 mm, and a tail length of 15.6 mm.

Headers, Male Pins Feature Summary

• Two-row board-to-board or wire-to-board interconnection capability
• Selective gold-plated contacts on CuSn alloy substrate
• Precision-engineered straight through-hole design

Headers, Male Pins Applications

• Board-to-board stacking connections
• Wire-to-board interface assemblies
• General electronic equipment interconnects

Headers, Male Pins Procurement Notes

Verify the specific suffix 'S' against official Fischer Elektronik documentation to confirm contact surface treatment specifications. Ensure the ordering part number matches the required 26-position configuration and that the selected variant meets the necessary thermal and mechanical requirements for the target application environment.

Headers, Male Pins Selection Notes

Select this component when a 26-position, two-row header with 2.54mm pitch is required. Confirm that the through-hole mounting style and straight orientation align with the PCB layout. Verify that the contact material and plating specifications satisfy the electrical conductivity and corrosion resistance needs of the system.

Headers, Male Pins Part Context

This component belongs to the Fischer Elektronik SL 22 series of precision pin headers. The series is characterized by its structured row layouts and standardized pitch dimensions, catering to reliable interconnection needs in various electronic assemblies requiring robust mechanical stability.

Headers, Male Pins Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided data. When replacing this component, ensure the new part matches the 2x13 position count, 2.54mm pitch, and through-hole mounting type.
