SL 5 315 7 Z

Headers, Male Pins Overview

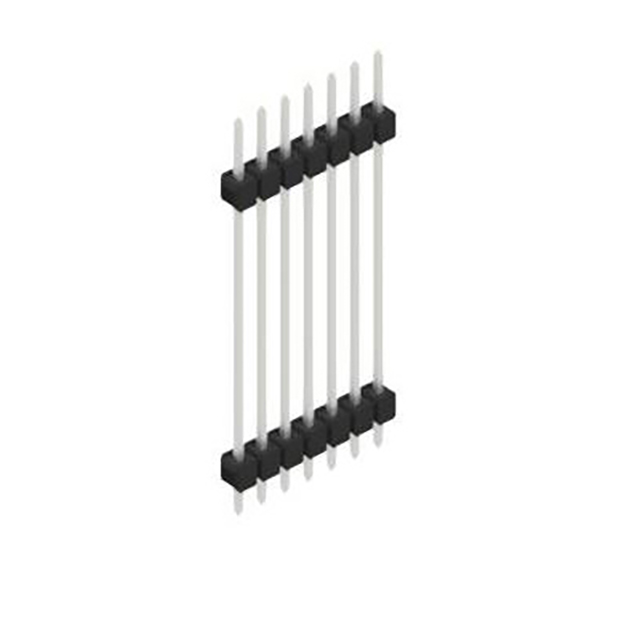

The SL 5 315 7 Z is a single-row male pin header connector manufactured by Fischer Elektronik. It features a 0.100-inch (2.54 mm) pitch and accommodates seven contacts. Designed for through-hole mounting, the connector utilizes tin-plated copper-silver alloy pins to ensure reliable electrical conductivity. The housing is constructed from polyamide material, providing structural integrity and insulation. This component is intended for board-to-board or wire-to-board interconnections in electronic assemblies requiring precise alignment and stable contact performance.

Headers, Male Pins Feature Summary

• Single-row configuration with straight pin orientation for standard PCB mounting
• Tin-plated contacts on copper alloy base for corrosion resistance and conductivity
• Polyamide housing material ensuring thermal stability and mechanical strength

Headers, Male Pins Applications

• Board-to-board stacking connections
• Wire-to-board interconnections
• General electronic circuit assembly

Headers, Male Pins Procurement Notes

Verify the specific part number against official Fischer Elektronik documentation to confirm pin count and plating specifications. Ensure compatibility with mating connectors regarding pitch and height. Check for any RoHS compliance certifications required by your supply chain standards. Confirm that the through-hole footprint matches your PCB design constraints before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this connector when a single-row, 2.54 mm pitch header is required for low-current applications. Consider the tin plating for general-purpose use where gold plating is not necessary. Evaluate the mechanical stability provided by the polyamide housing for your specific environmental conditions. Ensure the current rating aligns with your circuit requirements to prevent overheating during operation.

Headers, Male Pins Part Context

This component belongs to the SL 5 series of precision interconnection pins designed by Fischer Elektronik. The series focuses on reliable stacking of printed circuit boards. The SL 5 315 7 Z variant specifically offers seven positions, catering to applications needing moderate channel counts within a compact form factor. It represents a standard solution for vertical interconnects in consumer and industrial electronics.

Headers, Male Pins Replacement Considerations

No public confirmed substitute part numbers are available in the provided data. Verify cross-compatibility with other manufacturers' headers based on pitch, pin count, and mounting style if substitution is necessary.
