SLV W 2 KA 054 8 G

Headers, Male Pins Overview

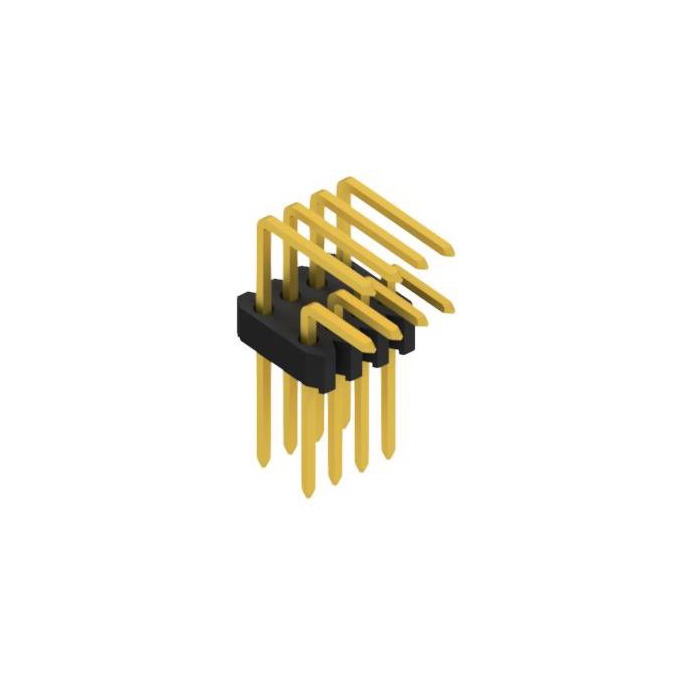

The SLV W 2 KA 054 8 G is a male header connector from the Fischer Elektronik SLV W 2 series. It features an 8-position configuration with two rows. The pin pitch is 1.27 mm, and the row spacing is 2.54 mm. Designed for through-hole PCB mounting, it utilizes CuZn alloy contacts with tin plating to ensure reliable electrical connectivity in electronic assemblies.

Headers, Male Pins Feature Summary

• High-precision male header design optimized for reliable connectivity
• Through-hole mounting construction for secure PCB attachment
• Tin-plated CuZn alloy contacts for corrosion resistance

Headers, Male Pins Applications

• General electronic circuit interconnections
• Industrial control system signal routing
• Consumer electronics assembly

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix 'G' against the manufacturer's current datasheet to confirm surface finish or material specifications. Ensure the 8-position count matches the required circuit density. Cross-reference the 1.27 mm pitch and 2.54 mm row spacing with the target PCB footprint to guarantee mechanical compatibility before procurement.

Headers, Male Pins Selection Notes

Select this component when a dual-row male header with 1.27 mm pin pitch is required. The 2.54 mm row spacing accommodates standard female headers. Consider the through-hole technology requirement and tin-plated contact finish for environmental durability in standard operating conditions.

Headers, Male Pins Part Context

This part belongs to the SLV W 2 series of pin headers by Fischer Elektronik. The series offers various position counts ranging from small configurations to higher-density options. All variants share the same 1.27 mm x 2.54 mm pitch geometry and through-hole mounting style, differing primarily in the number of poles.

Headers, Male Pins Replacement Considerations

Compatible substitutes include other Fischer Elektronik SLV W 2 KA 054 variants with matching 8 positions. Verify that any alternative maintains the identical 1.27 mm pin pitch and 2.54 mm row spacing to ensure board compatibility.
