SLY 7 SMD 045 34 Z

Headers, Male Pins Overview

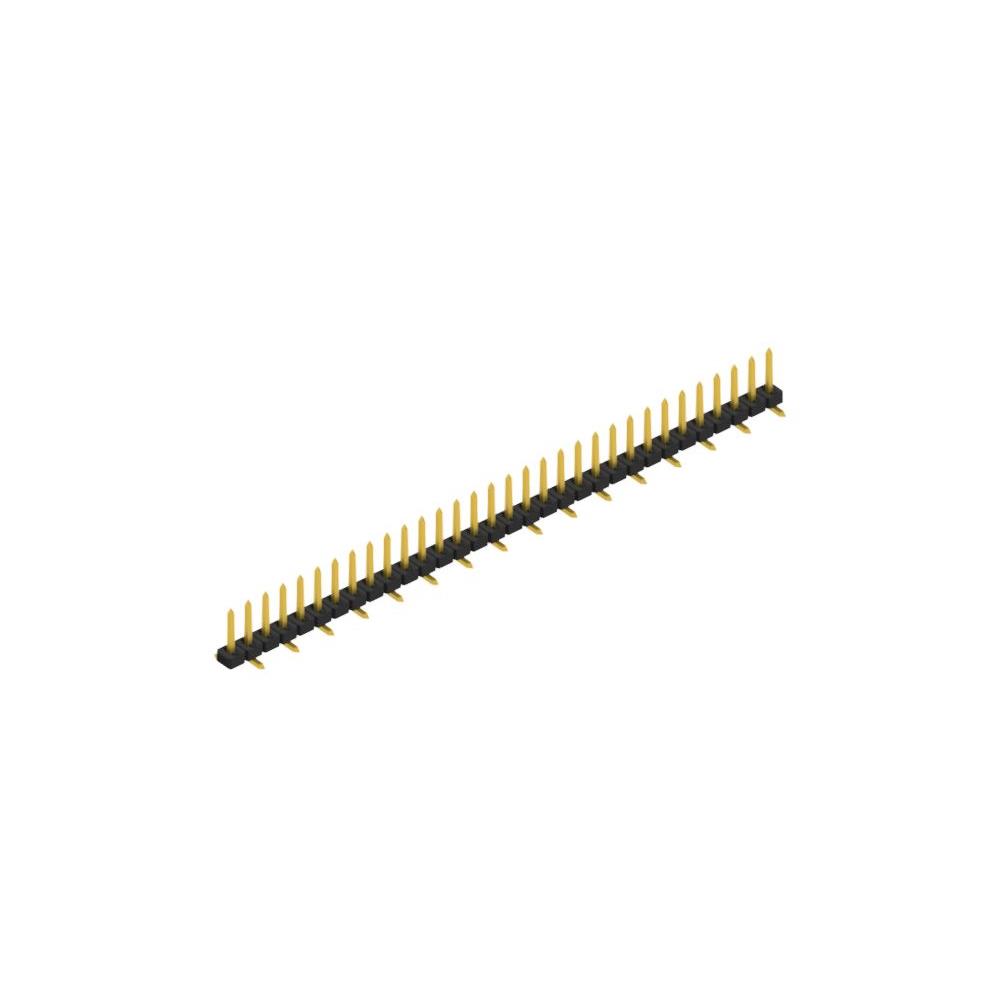

The Fischer Elektronik SLY 7 SMD 045 34 Z is a surface mount header connector featuring 34 positions with a 2.00 mm pitch and single row layout. It utilizes tin-plated contacts (suffix Z) and is designed for board-to-board or wire-to-board applications. The insulating body is constructed from PA 6.6 GF, providing thermal stability within an operating range of -40°C to +163°C. Electrical specifications include a nominal current of 3 A, a nominal voltage of 100 V DC, and a test voltage of 500 V.

Headers, Male Pins Feature Summary

• Surface mount design compatible with pick-and-place assembly processes
• Tin-plated contact finish ensuring reliable conductivity
• High-temperature resistant PA 6.6 GF insulating material

Headers, Male Pins Applications

• Board-to-board interconnection in electronic assemblies
• Wire-to-board connections requiring surface mount termination
• Industrial control systems operating within specified temperature ranges

Headers, Male Pins Procurement Notes

Verify the specific suffix 'Z' confirms tin plating rather than gold or selective gold options available in the SLY 7 series. Confirm the 34-position count matches the required circuit density. Ensure the 2.00 mm pitch aligns with the PCB footprint design. Check that the PA 6.6 GF material rating supports the application's thermal profile up to 163°C. Validate compatibility with standard reflow soldering profiles.

Headers, Male Pins Selection Notes

Select this component when a high-density single-row surface mount header is required. The 2.00 mm pitch offers a balance between spacing and pin count. Tin plating is suitable for general-purpose applications where cost efficiency is prioritized over extreme corrosion resistance. Ensure the 3 A current rating meets the load requirements. Consider the 163°C temperature limit for high-heat environments.

Headers, Male Pins Part Context

This part belongs to the Fischer Elektronik SLY 7 SMD series, which provides various position counts and plating options. The series includes variants with gold or selective gold finishes. The SLY 7 line is characterized by its robust construction and suitability for automated surface mount technology production lines in consumer and industrial electronics.

Headers, Male Pins Replacement Considerations

Direct substitutes must match the 34-position count, 2.00 mm pitch, and surface mount configuration. Verify that alternative tin-plated headers maintain identical electrical ratings and thermal characteristics. Cross-reference mechanical dimensions to ensure PCB footprint compatibility.
