SLY 8 SMD 036 18 G B TR

Headers, Male Pins Overview

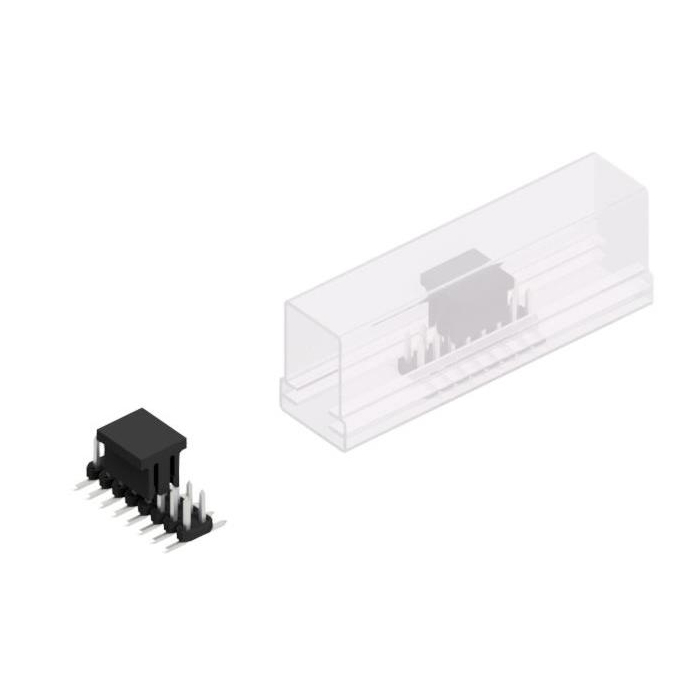

The Fischer Elektronik SLY 8 SMD 036 18 G B TR is a surface mount pin header connector featuring 18 contacts arranged in two rows. It utilizes a 2.00 mm pitch and a 2.00 mm row spacing layout. The component measures 5.6 mm in length, 8.5 mm in width, and 3.6 mm in height. It is supplied in tape and reel packaging with a capacity of 650 pieces per reel.

Headers, Male Pins Feature Summary

• Surface mount design for automated pick-and-place assembly
• Dual-row configuration providing 18 contact positions
• Compact footprint optimized for space-constrained board layouts

Headers, Male Pins Applications

• Board-to-board interconnections
• Wire-to-board connections
• General electronic equipment signal routing

Headers, Male Pins Procurement Notes

Verify the specific suffix 'TR' confirms tape and reel packaging rather than strip or bag formats. Confirm the contact count matches the '18' designation in the model number. Ensure the gold plating specification aligns with application requirements for corrosion resistance and conductivity.

Headers, Male Pins Selection Notes

Select this component when a low-profile, dual-row surface mount header is required. The 2.00 mm pitch suits applications needing moderate density without excessive board area usage. Verify that the 3.6 mm maximum height fits within the mechanical envelope constraints of the final assembly.

Headers, Male Pins Part Context

This part belongs to the SLY 8 SMD series of pin headers from Fischer Elektronik. The series offers various contact counts and mounting styles. This specific variant focuses on surface mount technology with a standardized 2.00 mm pitch for reliable electrical connections in compact designs.

Headers, Male Pins Replacement Considerations

Direct substitutes include other Fischer Elektronik SLY 8 SMD variants with identical pitch and row count but different contact numbers, such as SLY 8 SMD 036 10 G B TR or SLY 8 SMD 036 20 G B TR, provided the physical footprint allows.
