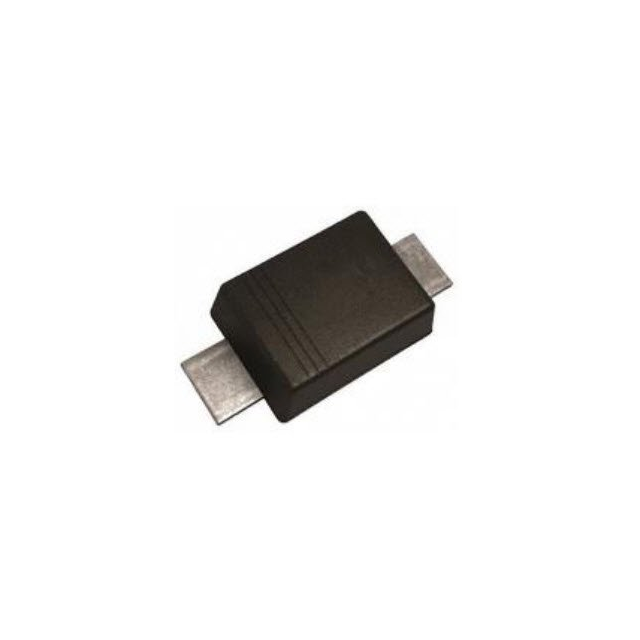

Tvs Diodes SMF85A product image

SMF85A

$0.20

Description：TVS DIODE 85VWM 137VC
Series：SMF
Mfr：Meritek
Package：Strip

SKU:b15f9bfb3d9d Category: TVS Diodes Brand: Meritek

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

SMF85A is listed in the Tvs Diodes range at ChipApex. The manufacturer field lists Meritek. Its product description is TVS DIODE 85VWM 137VC. Review the specifications below when checking this part for your BOM.

Tvs Diodes specifications for SMF85A

Description：TVS DIODE 85VWM 137VC
Series：SMF
Mfr：Meritek
Package：Strip
Type：Zener
Bidirectional Channels：-
Voltage - Reverse Standoff (Typ)：85V
Voltage - Breakdown (Min)：94.4V
Voltage - Clamping (Max) @ Ipp：137V
Current - Peak Pulse (10/1000µs)：1.46A
Power - Peak Pulse：200W
Power Line Protection：-
Applications：General Purpose
Capacitance @ Frequency：-
Operating Temperature：-55°C ~ 150°C
Mounting Type：Surface Mount
Package / Case：SOD-123FL
Supplier Device Package：-
Unidirectional Channels：1

Tvs Diodes datasheet and documents for SMF85A

SMF85A

Explore related parts through Transient Voltage Suppressors (TVS), Circuit Protection, all product categories, ChipApex homepage.

Online and offline orders are supported. If the item is available for online purchase, you can place it in the cart; for wholesale pricing, please contact our product manager for a quote.

Payment Method

Payment methods: T/T, WeChat Pay, credit cards, Google Pay, Apple Pay . Buyer covers shipping, fees, duties, and taxes; contact our product manager if you need a contract/procurement process.

Delivery time

In-stock items usually ship within 24 hours. Otherwise, shipment is arranged 1 to 2 days after the items arrive at our warehouse. Timing depends on destination and shipping method.

Freight calculation

Freight cost depends on destination, package size, and weight . We offer shipping options via DHL, FedEx, UPS, and TNT , and can ship using your freight account upon request.

Mode of Transportation

We ship via DHL, FedEx, UPS, and TNT. If you prefer a specific logistics provider, we can ship using your designated carrier.

Return and Refund

Returns are accepted within 60 days of invoice with RMA approval. Items must be resalable; original invoice and test report are required. No returns for customer errors.
