SP6213EC5-L-3-0/TR

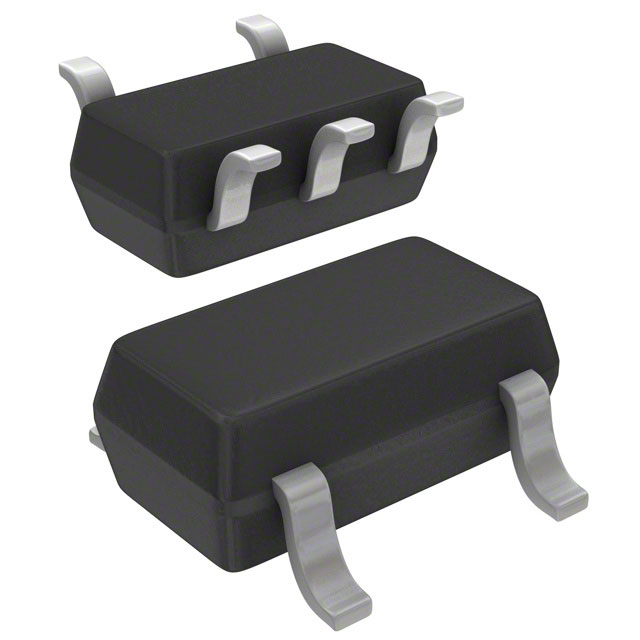

Description：IC REG LINEAR 3V 100MA SC-70-5
Series：-
Mfr：MaxLinear, Inc.
Package：Tape & Reel (TR)

SKU:634ef8cf6194 Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Brand: MaxLinear, Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

SP6213EC5-L-3-0/TR is listed in the Voltage Regulators - Linear, Low Drop Out (LDO) Regulators range at ChipApex. The manufacturer field lists MaxLinear, Inc.. Its product description is IC REG LINEAR 3V 100MA SC-70-5. Review the specifications below when checking this part for your BOM.

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators specifications for SP6213EC5-L-3-0/TR

Description：IC REG LINEAR 3V 100MA SC-70-5
Series：-
Mfr：MaxLinear, Inc.
Package：Tape & Reel (TR)
Output Configuration：Positive
Output Type：Fixed
Number of Regulators：1
Voltage - Input (Max)：6V
Voltage - Output (Min/Fixed)：3V
Voltage - Output (Max)：-
Voltage Dropout (Max)：0.5V @ 100mA
Current - Output：100mA
Current - Quiescent (Iq)：125 µA
Current - Supply (Max)：250 µA
PSRR：70dB ~ 40dB (100Hz ~ 400kHz)
Control Features：Enable
Protection Features：Over Current, Over Temperature
Operating Temperature：-40°C ~ 125°C
Mounting Type：Surface Mount
Package / Case：5-TSSOP, SC-70-5, SOT-353
Supplier Device Package：SC-70-5
Grade：-
Qualification：-

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators datasheet and documents for SP6213EC5-L-3-0/TR

SP6213EC5-L-3-0/TR

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Overview

The SP6213EC5-L-3-0/TR is a micropower, fixed-output linear voltage regulator manufactured by MaxLinear. It provides a guaranteed 100 mA output current with a fixed 3.0 V output voltage and 2.5% accuracy. The device operates in a tiny 5-pin SC-70 package and features low dropout voltage of 250 mV at full load. Key electrical parameters include a quiescent current of 65 µA, ground current of 135 µA at 100 mA load, and shutdown current of 1 µA. It includes thermal shutdown protection at 168°C, maximum current limit of 190 mA, and fast transient response times.

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Feature Summary

Unconditionally stable operation when used with standard 1µF ceramic capacitors
Integrated thermal shutdown circuitry for overtemperature protection
Low power consumption architecture suitable for battery-powered applications

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Applications

Portable electronic devices requiring efficient power management
Battery-operated systems utilizing lithium-ion or alkaline power sources
Embedded circuits needing stable 3.0 V logic supply rails

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Procurement Notes

Verify the specific manufacturer source, as this component has been produced by Exar, SipeX, and MaxLinear. Confirm that the ordering suffix matches the required pinout and package specifications. Ensure the selected variant aligns with the intended application's voltage and current requirements before finalizing procurement.

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Selection Notes

Select this regulator for designs requiring a compact footprint and high efficiency at moderate loads. It serves as a direct replacement for older 80 mA regulators like the MIC5213 and TC1016. Consider the 3.0 V fixed output option specifically for digital logic families requiring this precise voltage level.

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Part Context

This component belongs to the SP6213/SP6214 series of micropower CMOS LDO regulators. The SP6213 variant is designed to replace legacy 80 mA regulators while providing increased drive capability. The family offers various fixed output voltages including 1.8V, 2.5V, 2.7V, 2.85V, 3.0V, 3.3V, and 5V options.
