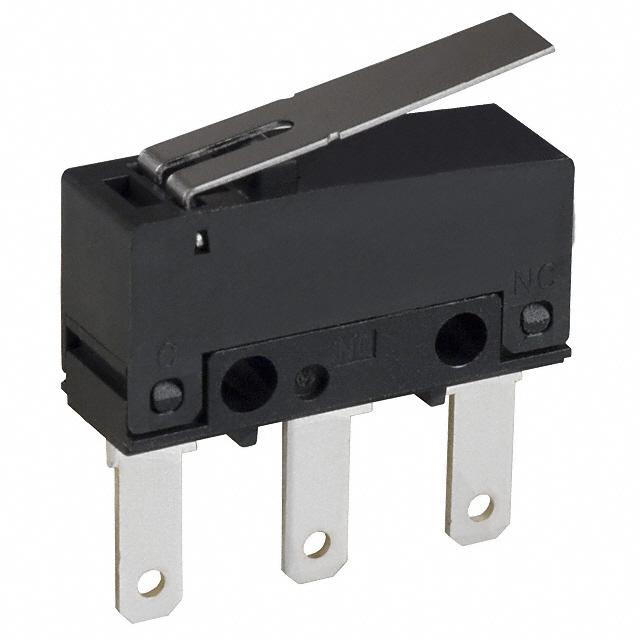

SS-3GLPT

SS-3GLPT is listed in the Limit Switches range at ChipApex. The manufacturer field lists Omron Electronics Inc-EMC Div. Its product description is SWITCH SNAP ACTION SPDT 3A 125V. Review the specifications below when checking this part for your BOM.

Limit Switches specifications for SS-3GLPT

• Description：SWITCH SNAP ACTION SPDT 3A 125V
• Series：SS-P
• Mfr：Omron Electronics Inc-EMC Div
• Package：Tray
• Circuit：SPDT
• Switch Function：On-Mom
• Current Rating (Amps)：3A (AC/DC)
• Voltage Rating - AC：125 V
• Actuator Type：Lever, Straight
• Mounting Type：Chassis Mount
• Termination Style：Quick Connect - 0.110" (2.8mm)
• Ingress Protection：IP40
• Features：-
• Operating Force：51gf
• Release Force：5.099gf
• Operating Position：0.345" (8.8mm)
• Pretravel：-
• Differential Travel：0.031" (0.8mm)
• Overtravel：0.040" (1.0mm)
• Operating Temperature：-25°C ~ 85°C
• Voltage Rating - DC：30 V

Limit Switches datasheet and documents for SS-3GLPT
