SSL-LX3044GD

LED Indication - Discrete Overview

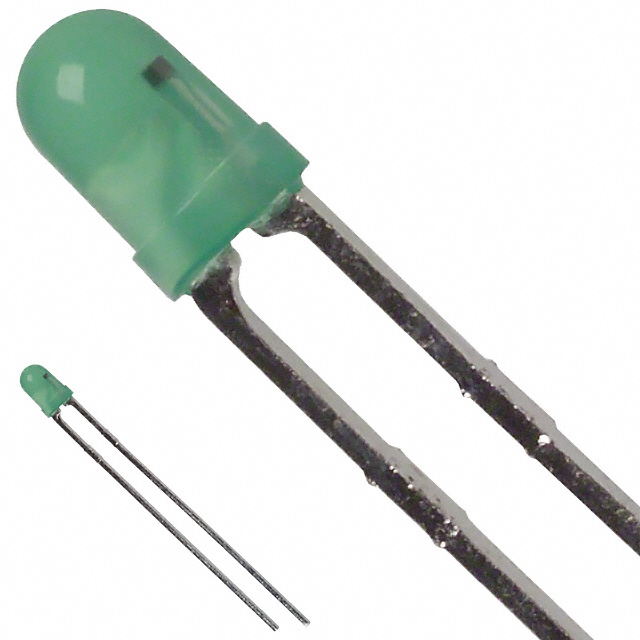

The SSL-LX3044GD is a single-color green light-emitting diode manufactured by Lumex Opto/Components Inc. It utilizes a T-1 (3 mm) through-hole package with a dome-shaped lens and diffused transparency to provide a wide viewing angle. The component emits light at a peak wavelength of 565 nm, classified as green. It operates with a forward current of 25 mA and delivers an optical intensity of 40 mcd. The device has a power rating of 105 mW and measures 4.6 mm in height.

LED Indication - Discrete Feature Summary

• Features a diffused dome lens for broad visibility
• Supports standard through-hole mounting
• Emits distinct green light at 565 nm

LED Indication - Discrete Applications

• Panel indicator lighting
• General status indication
• Electronic equipment signaling

LED Indication - Discrete Procurement Notes

Verify the specific suffix GD against official Lumex documentation to confirm the diffused lens configuration and 25 mA forward current rating. Ensure compatibility with existing PCB footprints for the T-1 3 mm radial lead format. Cross-reference datasheets for thermal limits and RoHS compliance status prior to finalizing supply chain agreements.

LED Indication - Discrete Selection Notes

Select this component when a standard 3 mm green indicator with moderate brightness is required. The diffused lens design suits applications needing uniform visual distribution rather than focused beams. Consider the 25 mA drive requirement for circuit design. Compare against other suffixes like GT or SUGD if different luminous intensity or lens clarity specifications are necessary for the target application.

LED Indication - Discrete Part Context

This part belongs to the SSL-LX3044 series of single-color LEDs from Lumex. The series offers various color and lens options within the same T-1 mechanical footprint. This specific model focuses on green emission with diffused optics, distinguishing it from clear lens variants or different color codes within the broader product family.

LED Indication - Discrete Replacement Considerations

Public confirmed substitute part numbers are not available in the provided source material.
