SSW024576F3CHC-T

Oscillators Overview

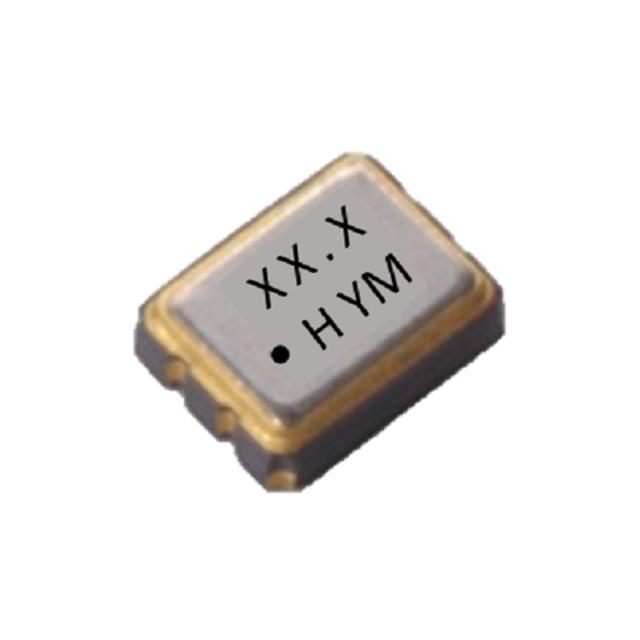

The SSW024576F3CHC-T is a standard crystal oscillator manufactured by Harmony Electronics Corp. It operates at a frequency of 24.576 MHz with a supply voltage of 3.3V. The device features a frequency stability of ±30ppm and supports enable/disable control. It is designed for surface mount installation in a 4-SMD package. The operating temperature range extends from -40°C to 85°C, with a maximum supply current of 15mA.

Oscillators Feature Summary

• Surface mount design for automated assembly
• Enable/disable functionality for power management
• Wide operating temperature range for industrial use

Oscillators Applications

• Data communication systems
• Networking applications
• Consumer devices

Oscillators Procurement Notes

Verify the specific ordering suffix and package variant against official Harmony Electronics documentation before procurement. Ensure the selected component matches the required frequency tolerance and supply voltage specifications for the target circuit design. Cross-reference the manufacturer part number with authorized distributor listings to confirm authenticity and availability status.

Oscillators Selection Notes

Select this oscillator when a 24.576 MHz clock signal is required with ±30ppm stability. The 3.3V supply requirement must align with the system logic levels. Consider the 4-SMD surface mount form factor for PCB layout constraints. Verify that the -40°C to 85°C temperature range meets the environmental conditions of the intended application environment.

Oscillators Part Context

This component belongs to the HSO321S series of quartz crystal oscillators produced by Harmony Electronics Corp. The series is characterized by precision timing capabilities and reliability for various electronic applications. Harmony Electronics has specialized in quartz frequency components since 1976, offering solutions for consumer, industrial, and networking sectors.

Oscillators Replacement Considerations

Consult official Harmony Electronics substitution guides for compatible alternatives. Verify pinout compatibility and electrical parameter equivalence for any cross-referenced parts.
