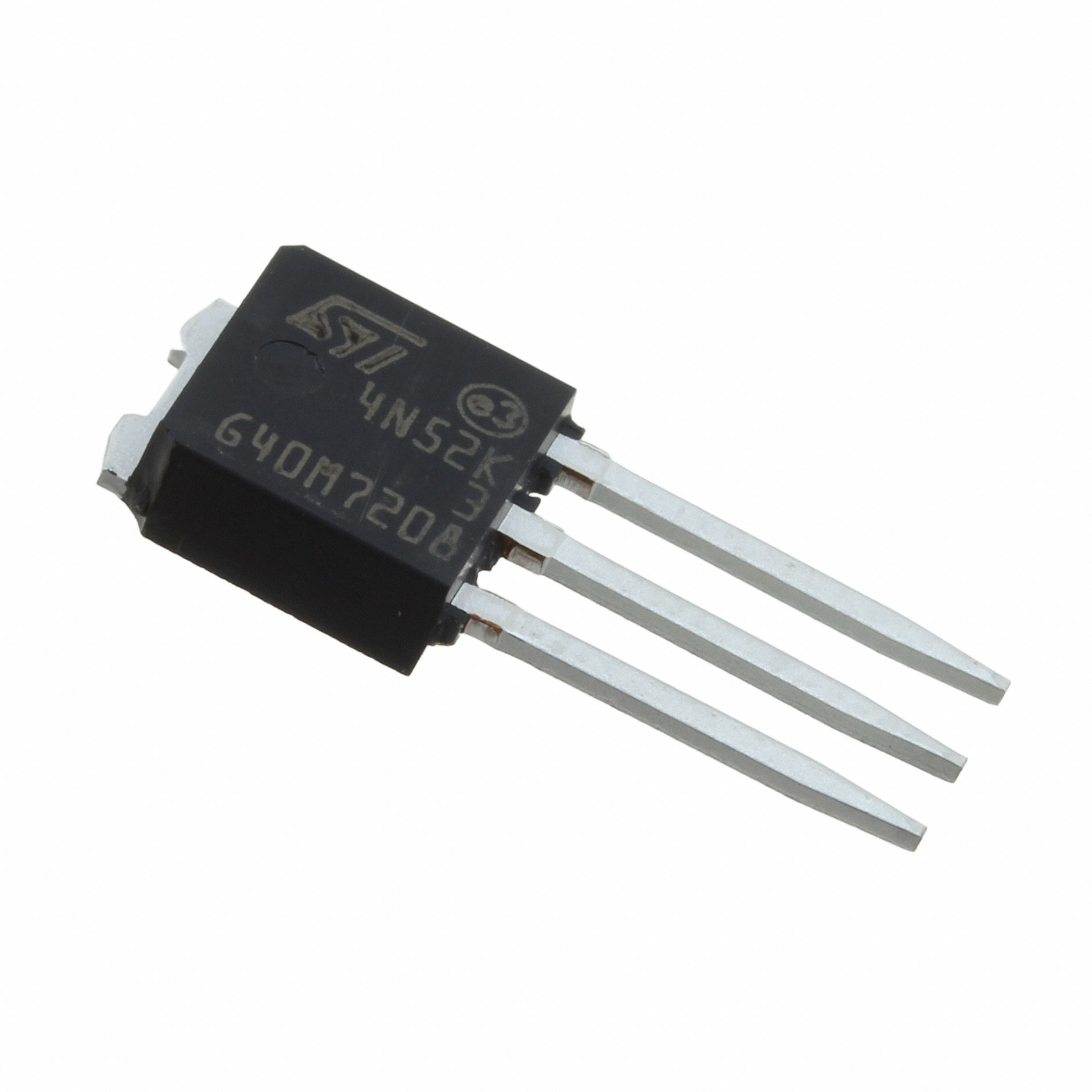

STU4N52K3

$1.29

Description：MOSFET N-CH 525V 2.5A IPAK
Series：SuperMESH3™
Mfr：STMicroelectronics
Package：Tube

SKU:942301fcf35e Category: Single FETs, MOSFETs Brand: STMicroelectronics

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

STU4N52K3 is listed in the Single FETs, MOSFETs range at ChipApex. The manufacturer field lists STMicroelectronics. Its product description is MOSFET N-CH 525V 2.5A IPAK. Review the specifications below when checking this part for your BOM.

Single FETs, MOSFETs specifications for STU4N52K3

Description：MOSFET N-CH 525V 2.5A IPAK
Series：SuperMESH3™
Mfr：STMicroelectronics
Package：Tube
FET Type：N-Channel
Technology：MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)：525 V
Current - Continuous Drain (Id) @ 25°C：2.5A (Tc)
Drive Voltage (Max Rds On, Min Rds On)：10V
Rds On (Max) @ Id, Vgs：2.6Ohm @ 1.25A, 10V
Vgs(th) (Max) @ Id：4.5V @ 50µA
Gate Charge (Qg) (Max) @ Vgs：11 nC @ 10 V
Vgs (Max)：±30V
Input Capacitance (Ciss) (Max) @ Vds：334 pF @ 100 V
FET Feature：-
Power Dissipation (Max)：45W (Tc)
Operating Temperature：150°C (TJ)
Grade：-
Qualification：-
Mounting Type：Through Hole
Supplier Device Package：IPAK
Package / Case：TO-251-3 Short Leads, IPAK, TO-251AA

Single FETs, MOSFETs datasheet and documents for STU4N52K3

STU4N52K3

Single FETs, MOSFETs Overview

The STU4N52K3 is an N-channel 525 V, 2.1 Ohm typ., 2.5 A MDmesh K3 Power MOSFET in an IPAK package.

Single FETs, MOSFETs Feature Summary

100% avalanche tested
Extremely high dv/dt capability
Very low intrinsic capacitance
Improved diode reverse recovery characteristics
Zener-protected

Single FETs, MOSFETs Applications

Single FETs, MOSFETs Procurement Notes

Verify the specific package type and electrical ratings against the official STMicroelectronics datasheet for part number STU4N52K3 before procurement. Ensure compatibility with the intended circuit design requirements.

Single FETs, MOSFETs Selection Notes

Select this component for applications requiring high-voltage handling and robust avalanche performance. The MDmesh K3 technology offers improved dynamic performance suitable for demanding power conversion environments.

Single FETs, MOSFETs Part Context

This device belongs to the MDmesh K3 Power MOSFET family from STMicroelectronics. It utilizes an optimized vertical structure combined with MDmesh technology to achieve low on-resistance and superior dynamic performance.
