SWLP.2450.12.4.B.02

Antennas RF Overview

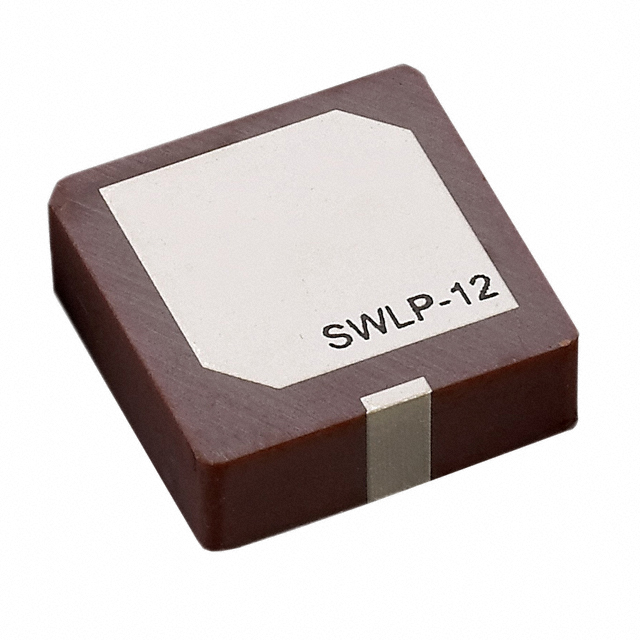

The SWLP.2450.12.4.B.02 is a ceramic patch RF antenna manufactured by Taoglas Limited, designed for surface-mount applications. It operates within the 2.4GHz to 2.5GHz frequency range, supporting WLAN and Zigbee protocols compliant with IEEE 802.15.4 and WiFi standards. The component features a maximum height of 4.00mm (0.157 inches) and provides a gain of 2dBi. It utilizes solder termination and exhibits a Voltage Standing Wave Ratio (VSWR) of 3. The antenna is classified under the UHF frequency group and is RoHS3 compliant.

Antennas RF Feature Summary

• Ceramic construction optimized for compact surface-mount integration
• Supports dual-band operation across 2.4GHz WLAN and Zigbee ISM frequencies
• Designed for direct solder attachment to PCB substrates

Antennas RF Applications

• Wireless Local Area Network (WLAN) devices
• Zigbee™ based sensor networks
• IEEE 802.15.4 compliant IoT modules

Antennas RF Procurement Notes

Verify the specific ordering suffix against the manufacturer's current datasheet to ensure correct packaging and variant selection. Confirm that the requested part matches the exact electrical specifications required for the target application, particularly regarding the 2.4GHz frequency band and impedance matching requirements. Cross-reference the manufacturer product number with official Taoglas documentation to avoid substitution errors.

Antennas RF Selection Notes

Select this component for designs requiring a low-profile, high-reliability ceramic antenna suitable for space-constrained portable electronics. Ensure the host PCB layout accommodates the specified ground plane requirements typical for patch antennas. Consider the 2dBi gain and VSWR characteristics when calculating link budget margins for the intended wireless communication range.

Antennas RF Part Context

This model belongs to the SWLP.12 series of high-gain SMD patch antennas from Taoglas Limited. It is specifically engineered for the 2.4GHz ISM band, offering a robust alternative to traditional wire or flex antennas in modern consumer electronics and industrial IoT devices where mechanical durability and consistent radiation patterns are critical.

Antennas RF Replacement Considerations

The SWLPD.12 is an evaluation kit associated with this antenna, not a direct replacement. No other public substitute part numbers are confirmed in the available documentation.
