SX5A11.0592F2010F30

Crystals Overview

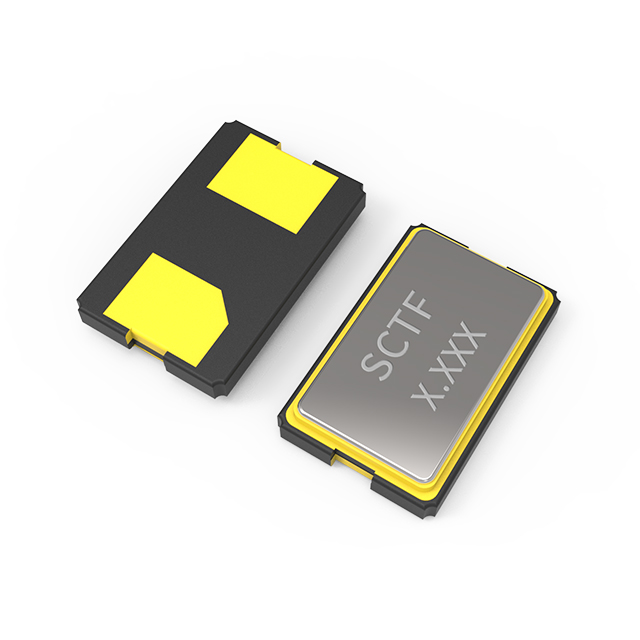

The SX5A11.0592F2010F30 is a surface-mount crystal oscillator manufactured by Shenzhen SCTF Electronics. It operates at a nominal frequency of 11.0592 MHz with a frequency tolerance of ±10 ppm. The component features a load capacitance of 20 pF and an equivalent series resistance (ESR) of 80 Ohms. It utilizes a 2-SMD, no lead package configuration designed for automated assembly processes.

Crystals Feature Summary

• Surface-mount design suitable for automated pick-and-place manufacturing
• Stable frequency generation with specified tolerance for timing applications

Crystals Applications

• Microcontroller clock sources
• Communication interface timing circuits
• Digital signal processing systems

Crystals Procurement Notes

Verify the manufacturer designation Shenzhen SCTF Electronics against official component databases to confirm authenticity. Ensure the specific suffix F2010F30 matches the required load capacitance and ESR specifications for the target circuit design before procurement.

Crystals Selection Notes

Select this component when a 11.0592 MHz reference is required with ±10 ppm stability. Confirm that the 20 pF load capacitance aligns with the connected oscillator circuit requirements and that the 80 Ohm ESR is within acceptable limits for the application.

Crystals Part Context

This part belongs to the family of surface-mount crystals produced by Shenzhen SCTF Electronics. These components are engineered for precision timing in electronic systems requiring stable oscillation frequencies without the need for through-hole mounting techniques.

Crystals Replacement Considerations

Consult cross-reference tools for parametrically similar parts. Verify that any substitute maintains identical frequency, tolerance, load capacitance, and package dimensions to ensure circuit compatibility.
