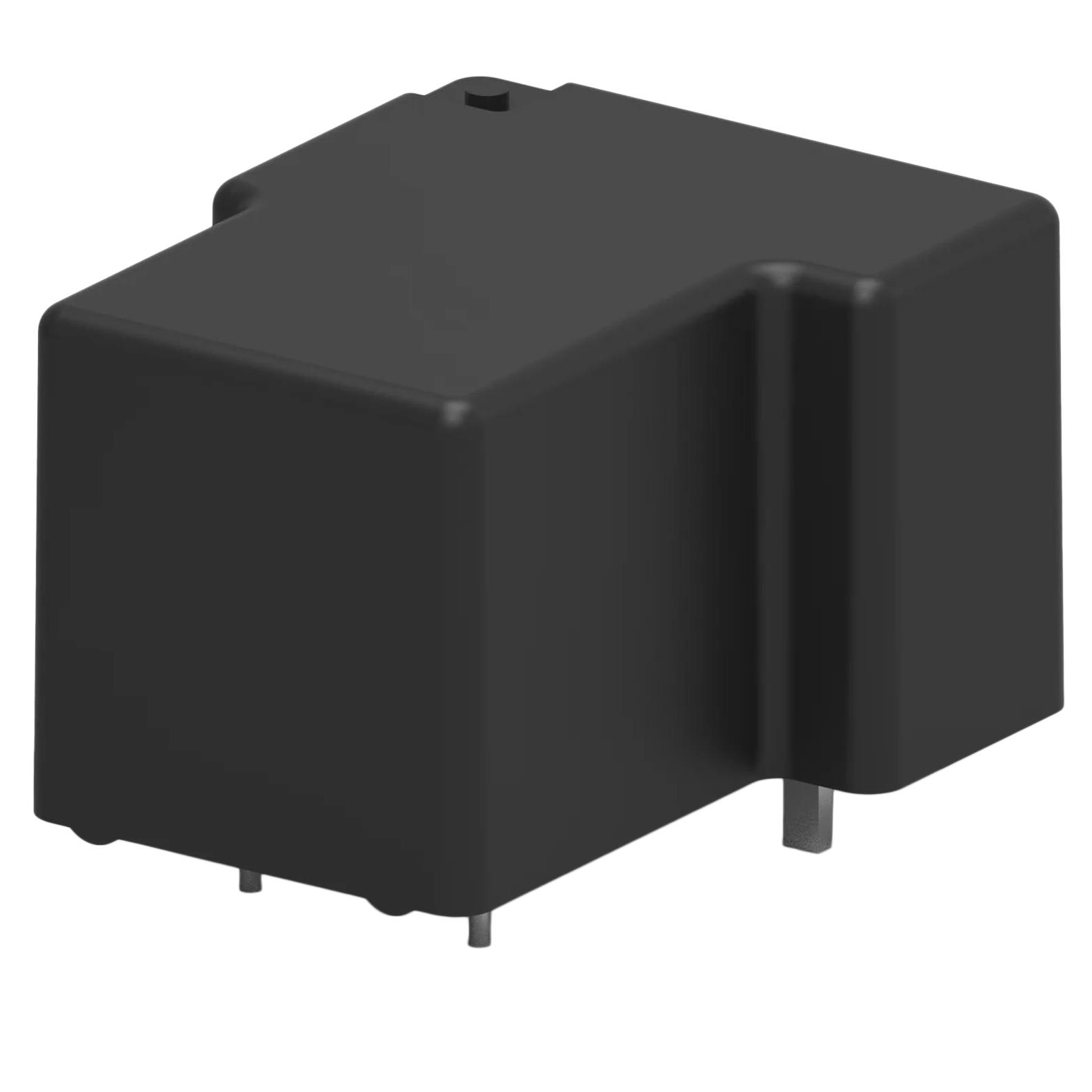

Power Relays, Over 2 Amps T9AS1D14-5 product image

T9AS1D14-5

$8.33

Description：RELAY GEN PURPOSE SPST 30A 5V
Series：T9A
Mfr：TE Connectivity Potter & Brumfield Relays
Package：Bulk

SKU:0ba1652d22b7 Category: Power Relays, Over 2 Amps Brand: TE Connectivity Potter & Brumfield Relays

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

T9AS1D14-5 is listed in the Power Relays, Over 2 Amps range at ChipApex. The manufacturer field lists TE Connectivity Potter & Brumfield Relays. Its product description is RELAY GEN PURPOSE SPST 30A 5V. Review the specifications below when checking this part for your BOM.

Power Relays, Over 2 Amps specifications for T9AS1D14-5

Description：RELAY GEN PURPOSE SPST 30A 5V
Series：T9A
Mfr：TE Connectivity Potter & Brumfield Relays
Package：Bulk
Mounting Type：Through Hole
Coil Voltage：5VDC
Contact Form：SPST-NO (1 Form A)
Contact Rating (Current)：30 A
Switching Voltage：277VAC - Max
Load - Max Switching：8310VA
Coil Current：200 mA
Coil Type：Non Latching
Features：-
Termination Style：PC Pin
Seal Rating：Sealed - Fully
Coil Insulation：Class F
Must Operate Voltage：3.75 VDC
Must Release Voltage：0.5 VDC
Operating Temperature：-55°C ~ 85°C
Contact Material：Silver Tin Oxide Indium Oxide (AgSnOInO)
Approval Agency：cURus
Relay Type：General Purpose
Grade：-
Qualification：-
Operate Time：15 ms
Release Time：15 ms

Power Relays, Over 2 Amps datasheet and documents for T9AS1D14-5

T9AS1D14-5
