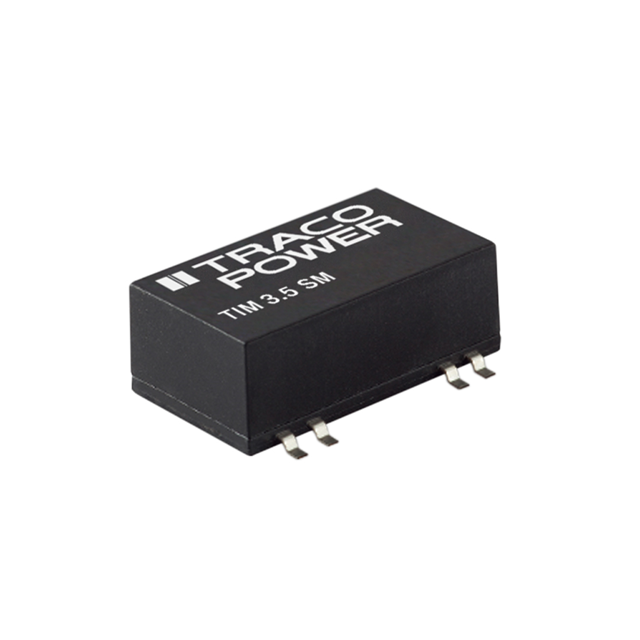

TIM 3.5-2411SM

TIM 3.5-2411SM is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Traco Power. Its product description is DC DC CONVERTER 5V 3.5W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for TIM 3.5-2411SM

• Description：DC DC CONVERTER 5V 3.5W
• Series：TIM 3.5SM (3.5W)
• Mfr：Traco Power
• Package：Tube
• Type：Isolated Module
• Number of Outputs：1
• Voltage - Input (Min)：18V
• Voltage - Input (Max)：36V
• Voltage - Output 1：5V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：700mA
• Power (Watts)：3.5 W
• Voltage - Isolation：5 kV
• Applications：Medical
• Features：Remote On/Off, OVP, SCP
• Operating Temperature：-40°C ~ 90°C (With Derating)
• Efficiency：79%
• Mounting Type：Surface Mount
• Package / Case：16-SMD Module, 7 Leads
• Size / Dimension：0.96" L x 0.57" W x 0.41" H (24.3mm x 14.4mm x 10.5mm)
• Supplier Device Package：-
• Control Features：-
• Approval Agency：-
• Standard Number：-

DC DC Converters datasheet and documents for TIM 3.5-2411SM
