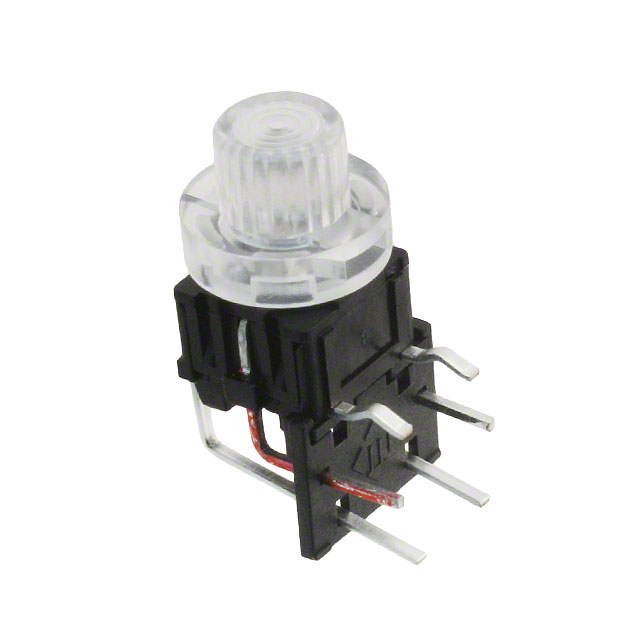

TL1250F180RQRCLR

TL1250F180RQRCLR is listed in the Tactile Switches range at ChipApex. The manufacturer field lists E-Switch. Its product description is SWITCH TACTILE SPST-NO 0.05A 12V. Review the specifications below when checking this part for your BOM.

Tactile Switches specifications for TL1250F180RQRCLR

• Description：SWITCH TACTILE SPST-NO 0.05A 12V
• Series：TL1250
• Mfr：E-Switch
• Package：Tray
• Circuit：SPST-NO
• Switch Function：Off-Mom
• Contact Rating @ Voltage：0.05A @ 12VDC
• Actuator Type：Round Button
• Mounting Type：Through Hole, Right Angle
• Actuator Height off PCB, Vertical：-
• Actuator Length, Right Angle：10.70mm
• Actuator Orientation：Side Actuated
• Termination Style：PC Pin
• Outline：8.30mm x 10.30mm
• Illumination：Illuminated
• Illumination Type, Color：LED, Red
• Illumination Voltage (Nominal)：2.3 VDC
• Operating Force：180gf
• Ingress Protection：-
• Features：Tactile Feedback
• Operating Temperature：-20°C ~ 70°C

Tactile Switches datasheet and documents for TL1250F180RQRCLR
