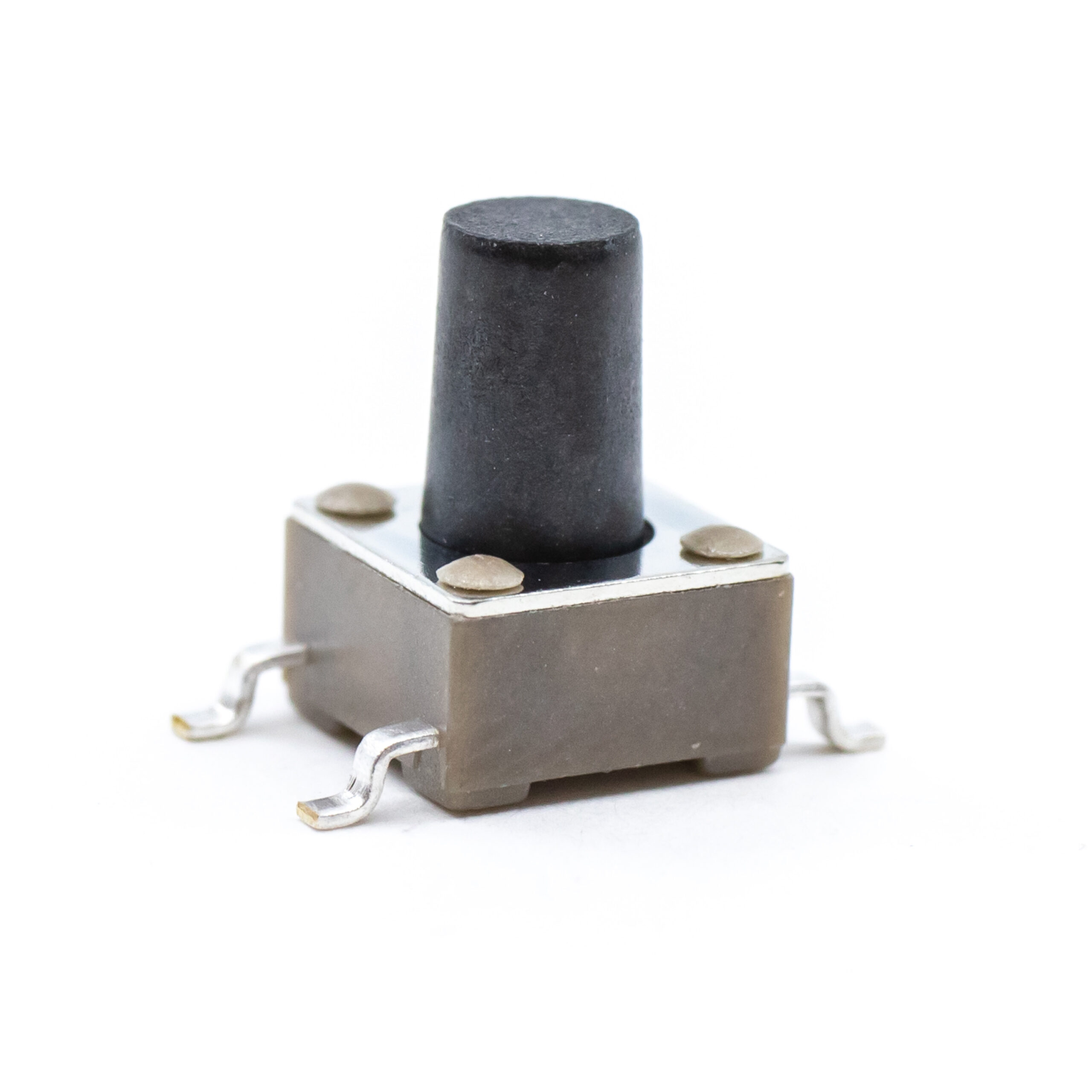

TL3301PF260QG

TL3301PF260QG is listed in the Tactile Switches range at ChipApex. The manufacturer field lists E-Switch. Its product description is SWITCH TACTILE SPST-NO 0.05A 12V. Review the specifications below when checking this part for your BOM.

Tactile Switches specifications for TL3301PF260QG

• Description：SWITCH TACTILE SPST-NO 0.05A 12V
• Series：TL3301
• Mfr：E-Switch
• Package：Tape & Reel (TR),Cut Tape (CT)
• Circuit：SPST-NO
• Switch Function：Off-Mom
• Contact Rating @ Voltage：0.05A @ 12VDC
• Actuator Type：Standard
• Mounting Type：Surface Mount
• Actuator Height off PCB, Vertical：8.50mm
• Actuator Length, Right Angle：-
• Actuator Orientation：Top Actuated
• Termination Style：Gull Wing
• Outline：6.00mm x 6.00mm
• Illumination：Non-Illuminated
• Illumination Type, Color：-
• Illumination Voltage (Nominal)：-
• Operating Force：260gf
• Ingress Protection：-
• Features：-
• Operating Temperature：-40°C ~ 85°C

Tactile Switches datasheet and documents for TL3301PF260QG
