TLHO4201

LED Indication - Discrete Overview

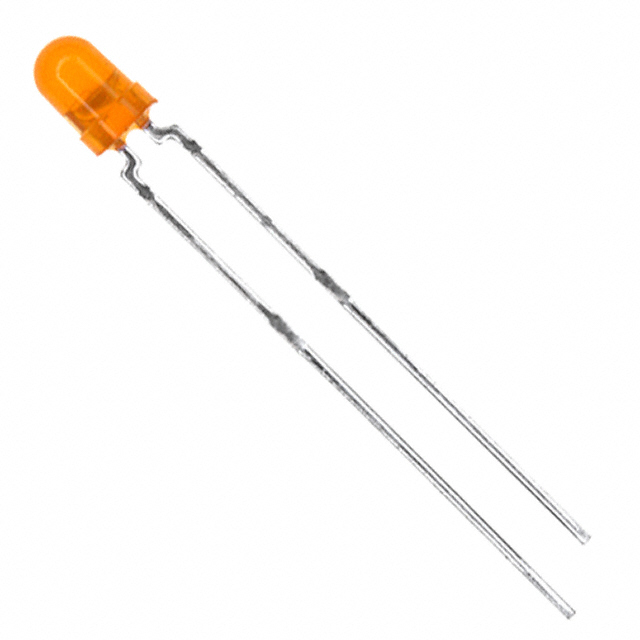

The TLHO4201 is a single-color orange light-emitting diode from Vishay Semiconductor Opto Division, designed for discrete indication applications. It features a clear tinted lens and operates at a dominant wavelength of 605nm. The component exhibits a typical forward voltage of 2.4V and provides an intensity range of 10-18mcd at a test current of 10mA. It utilizes a radial T-1 (3mm) package configuration suitable for through-hole mounting.

LED Indication - Discrete Feature Summary

• Orange emission with clear tinted lens for visual indication
• Radial T-1 3mm package design for standard mounting
• Optimized luminous intensity for panel indicator use

LED Indication - Discrete Applications

• Panel status indicators
• Equipment power state signaling
• Control board visual feedback

LED Indication - Discrete Procurement Notes

Verify the specific ordering suffix to confirm lens tint and binning requirements. Ensure the procurement channel sources genuine Vishay components to guarantee optical consistency. Confirm that the radial lead form matches the target PCB footprint specifications before finalizing orders.

LED Indication - Discrete Selection Notes

Select this component when a bright orange indication is required in a compact 3mm radial form factor. Consider the 2.4V forward voltage drop for circuit drive calculations. Verify compatibility with available driving currents against the specified 10mA test condition for optimal brightness performance.

LED Indication - Discrete Part Context

This part belongs to the TLH series of through-hole LEDs from Vishay. It serves as a standard discrete indicator within optoelectronic assemblies. The product line focuses on reliable visual signaling solutions for industrial and consumer electronics hardware designs requiring distinct color coding.

LED Indication - Discrete Replacement Considerations

Cross-reference with other Vishay T-1 orange LEDs such as the TLHR4200 series for similar mechanical dimensions. Verify spectral peak alignment if strict color matching is required across production batches.
