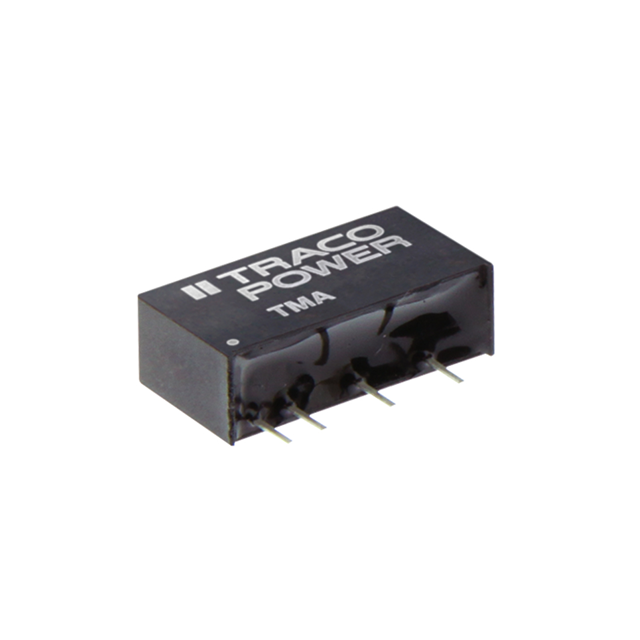

TMA 1515D

TMA 1515D is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Traco Power. Its product description is DC DC CONVERTER +/-15V 1W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for TMA 1515D

• Description：DC DC CONVERTER +/-15V 1W
• Series：TMA (1W)
• Mfr：Traco Power
• Package：Tube
• Type：Isolated Module
• Number of Outputs：2
• Voltage - Input (Min)：13.5V
• Voltage - Input (Max)：16.5V
• Voltage - Output 1：15V
• Voltage - Output 2：-15V
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：34mA, 34mA
• Power (Watts)：1 W
• Voltage - Isolation：1 kV
• Applications：ITE (Commercial)
• Features：SCP
• Operating Temperature：-40°C ~ 85°C (With Derating)
• Efficiency：80%
• Mounting Type：Through Hole
• Package / Case：6-SIP Module, 5 Leads
• Size / Dimension：0.77" L x 0.24" W x 0.40" H (19.5mm x 6.1mm x 10.2mm)
• Supplier Device Package：-
• Control Features：-
• Approval Agency：-
• Standard Number：-

DC DC Converters datasheet and documents for TMA 1515D
