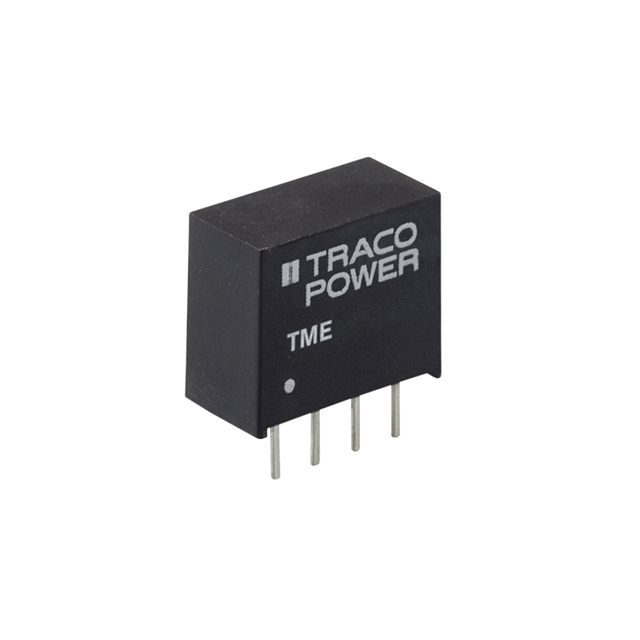

TME 0305S

TME 0305S is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Traco Power. Its product description is DC DC CONVERTER 5V 1W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for TME 0305S

• Description：DC DC CONVERTER 5V 1W
• Series：TME (1W)
• Mfr：Traco Power
• Package：Tube
• Type：Isolated Module
• Number of Outputs：1
• Voltage - Input (Min)：2.97V
• Voltage - Input (Max)：3.63V
• Voltage - Output 1：5V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：200mA
• Power (Watts)：1 W
• Voltage - Isolation：1 kV
• Applications：ITE (Commercial)
• Features：SCP
• Operating Temperature：-40°C ~ 85°C (With Derating)
• Efficiency：77%
• Mounting Type：Through Hole
• Package / Case：4-SIP Module
• Size / Dimension：0.45" L x 0.28" W x 0.40" H (11.5mm x 7.1mm x 10.2mm)
• Supplier Device Package：-
• Control Features：-
• Approval Agency：-
• Standard Number：-
