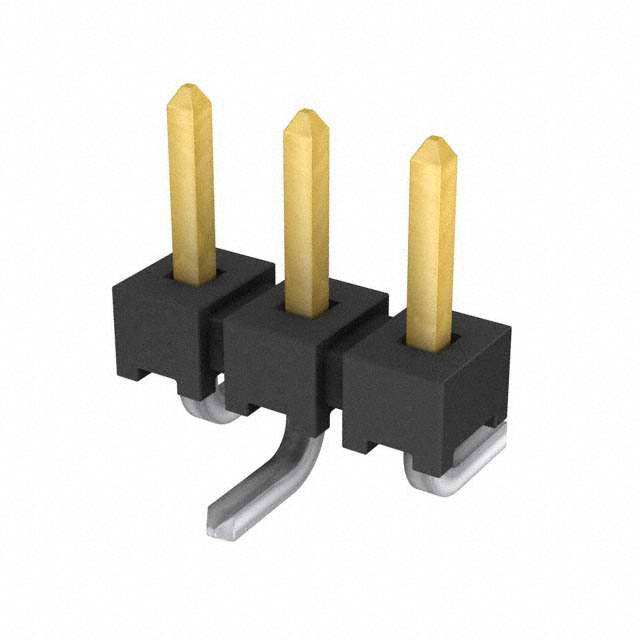

TMM-103-01-S-S-SM-P

$3.04

Description：2MM TERMINAL STRIP
Series：TMM
Mfr：Samtec Inc.
Package：Tube,Tube

SKU:7054ca766d35 Category: Headers, Male Pins Brand: Samtec Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：chipapex@foxmail.com
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

TMM-103-01-S-S-SM-P is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Samtec Inc.. Its product description is 2MM TERMINAL STRIP. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for TMM-103-01-S-S-SM-P

Description：2MM TERMINAL STRIP
Series：TMM
Mfr：Samtec Inc.
Package：Tube,Tube
Connector Type：Header
Contact Type：Male Pin
Pitch - Mating：0.079" (2.00mm)
Number of Positions：3
Number of Rows：1
Row Spacing - Mating：-
Number of Positions Loaded：All
Style：Board to Board or Cable
Shrouding：Unshrouded
Mounting Type：Surface Mount
Termination：Solder
Fastening Type：Push-Pull
Contact Length - Mating：0.126" (3.20mm)
Contact Length - Post：-
Overall Contact Length：-
Insulation Height：0.059" (1.50mm)
Contact Shape：Square
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：30.0µin (0.76µm)
Contact Finish - Post：Tin
Contact Material：Phosphor Bronze
Insulation Material：Liquid Crystal Polymer (LCP)
Features：Pick and Place
Operating Temperature：-55°C ~ 125°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：3.2A per Contact
Voltage Rating：-

Headers, Male Pins datasheet and documents for TMM-103-01-S-S-SM-P

TMM-103-01-S-S-SM-P

Headers, Male Pins Overview

The TMM-103-01-S-S-SM-P is a board connector manufactured by Samtec Inc. It features 3 contacts arranged in a single row of female sockets with a 0.079-inch pitch. The component utilizes solder terminals and has a black insulator. Electrical specifications include a contact resistance of 10 mΩ, a dielectric withstand voltage of 600VAC, and an insulation resistance of 5,000,000,000 Ω. The maximum insertion force is rated at 1.251 N.

Headers, Male Pins Feature Summary

Designed for surface mount installation on printed circuit boards
Features a straight orientation for direct board connection
Constructed with a black insulator housing

Headers, Male Pins Applications

Board-to-board interconnections
Cable-to-board connections
General electronic assembly requiring surface mount headers

Headers, Male Pins Procurement Notes

Verify the specific part number against official Samtec documentation to ensure accuracy. Confirm that the required contact configuration, pitch, and termination style match the design requirements. Check for RoHS compliance status if environmental regulations apply to the final product assembly.

Headers, Male Pins Selection Notes

Select this component when a low-profile, surface-mount female header is required for a three-position interface. Ensure the mating connector aligns with the specified 0.079-inch pitch and socket type. Consider the straight mounting orientation and solder terminal compatibility with the PCB fabrication process.

Headers, Male Pins Part Context

This component belongs to the Samtec board connector family, specifically designed for reliable electrical interconnection in compact electronic assemblies. It serves as a standard interface solution for connecting cables or secondary boards to a primary PCB using surface mount technology.
