TMM-104-05-G-D-SM

Headers, Male Pins Overview

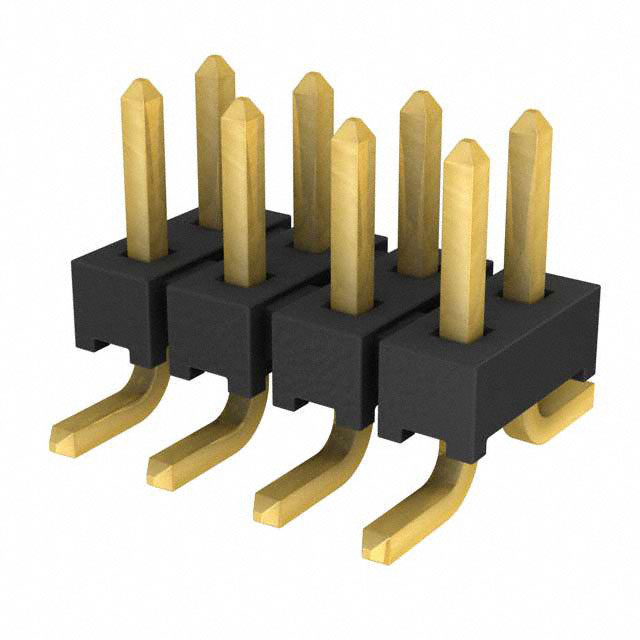

The TMM-104-05-G-D-SM is a low-profile header strip manufactured by Samtec Inc. It features an 8-position, dual-row configuration with a 2.00mm (0.079 inch) pitch. Designed for surface-mount termination, the connector utilizes phosphor bronze contacts with gold plating to ensure reliable signal transmission. The housing is constructed from black liquid crystal polymer (LCP), rated UL 94 V-0 for flammability. It supports a maximum current rating of 3.2A per contact and operates within a temperature range of -55°C to 125°C.

Headers, Male Pins Feature Summary

• Low-profile design facilitates compact board-to-board or cable connections
• Gold-plated phosphor bronze contacts provide corrosion resistance and stable conductivity
• Surface-mount termination enables automated assembly processes
• Liquid crystal polymer insulation offers high thermal stability and mechanical strength

Headers, Male Pins Applications

• High-density electronic assemblies requiring minimal vertical profile
• Board-to-board interconnections in consumer electronics
• Industrial control systems with space constraints
• Automotive infotainment and sensor modules

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix against the official Samtec catalog to confirm pin count, row configuration, and termination style. Ensure compatibility with surface-mount footprint requirements and check RoHS compliance status for environmental regulations. Cross-reference the lead time and packaging type directly with authorized distributors to avoid supply chain discrepancies.

Headers, Male Pins Selection Notes

Select this component when a low-height header is required for surface-mount applications. Confirm that the 2.00mm pitch matches the mating connector or PCB layout. Evaluate the 3.2A current rating against system power requirements. Consider the operating temperature range if the environment exceeds standard commercial limits. Verify that the dual-row format fits within the available board area.

Headers, Male Pins Part Context

This part belongs to the TMM series of low-profile terminal strips. The series is characterized by its thin profile and robust construction suitable for severe environments. It complements other Samtec interconnect solutions by providing flexible post height options and reliable performance in compact form factors.

Headers, Male Pins Replacement Considerations

Public confirmed substitute part numbers are not provided in the source documentation. Consult Samtec engineering for direct equivalents or cross-references based on specific electrical and mechanical requirements.
