TMM-130-01-T-Q-RA

Headers, Male Pins Overview

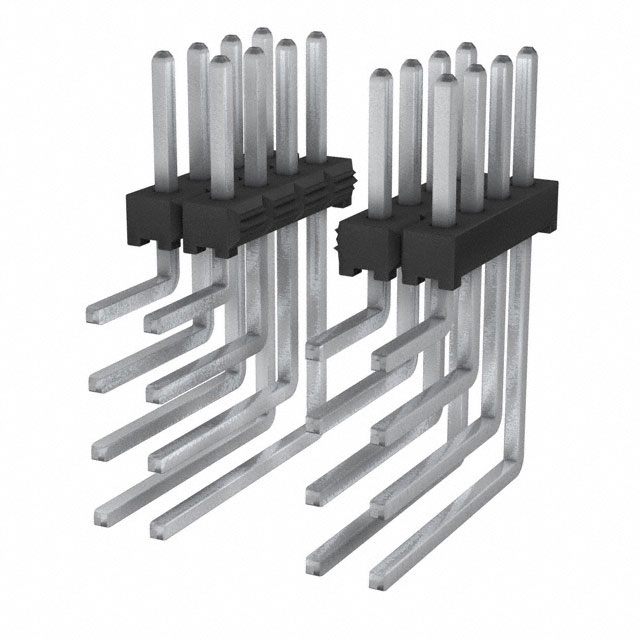

Samtec TMM-130-01-T-Q-RA is a Low Profile Tiger Eye™ Header Strip featuring a 2.00 mm pitch and four rows of contacts. It provides 120 positions with male pin terminals designed for right-angle through-hole solder termination. The connector utilizes phosphor bronze contacts with tin plating, housed in black liquid crystal polymer (LCP). It supports current ratings up to 3.2 A per pin and operates within a temperature range of -55°C to +105°C.

Headers, Male Pins Feature Summary

• FleXYZ design flexibility allows configuration across all three axes
• Low profile construction suitable for space-constrained applications
• Square post contact system ensures reliable mating

Headers, Male Pins Applications

• High-density board-to-board interconnects
• Automotive A-Series product integration
• Industrial control systems requiring flexible routing

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix against official Samtec documentation to confirm row count and termination style. Ensure the selected variant matches the required pitch and housing material specifications for your assembly process. Cross-reference the manufacturer part number with authorized distributor catalogs to confirm availability and compliance status before finalizing procurement plans.

Headers, Male Pins Selection Notes

Select this component when high-density interconnectivity is required in low-profile designs. The four-row configuration maximizes contact density while maintaining standard 2.00 mm spacing. Consider the right-angle orientation for efficient PCB layout optimization and cable management constraints in compact electronic enclosures.

Headers, Male Pins Part Context

This part belongs to the TMM series of Low Profile Tiger Eye™ Header Strips. The series offers extensive configurability with options for various pin counts up to 200 positions and multiple termination styles. It is engineered for applications demanding robust signal integrity and mechanical reliability in dense electronic assemblies.

Headers, Male Pins Replacement Considerations

Direct substitutes include other TMM series variants with matching pitch and row configurations. Verify compatibility with existing mating connectors and PCB footprint dimensions before implementing any alternative part numbers from the same manufacturer family.
