TMMH-111-01-L-D

Headers, Male Pins Overview

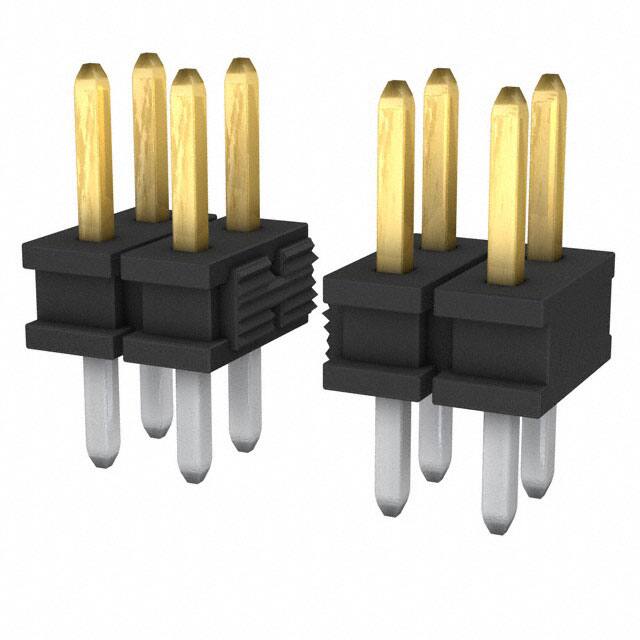

The TMMH-111-01-L-D is a board-to-board connector from the Samtec TMMH series, designed for high-density interconnect applications. It features a 2.00 mm (0.079 inch) pitch with 11 positions arranged in a dual row configuration. The connector utilizes phosphor bronze contacts with gold plating over nickel to ensure reliable signal transmission and corrosion resistance. Rated for 3.2 A per contact, it supports surface mount termination methods for automated assembly. The housing is constructed from black liquid crystal polymer (LCP), providing thermal stability and mechanical strength.

Headers, Male Pins Feature Summary

• Ultra-thin profile design facilitates compact circuit board layouts
• Flexible FleXYZ™ system allows multi-row configurations up to six rows
• Square pin socket interface ensures secure mating engagement
• Surface mount termination enables efficient pick-and-place assembly

Headers, Male Pins Applications

• High-density electronic modules requiring thin form factors
• Board-to-board interconnections in compact devices
• Automotive electronics utilizing automotive-grade variants
• Industrial control systems needing rugged connectors

Headers, Male Pins Procurement Notes

Verify that the specific part number matches the required contact count and termination style. Confirm compliance with RoHS directives and check for any specific automotive qualification requirements if used in vehicle applications. Ensure the selected variant aligns with the intended PCB layout and mating partner specifications.

Headers, Male Pins Selection Notes

Select this component when space constraints demand an ultra-thin connector solution. Consider the TMMH series for its flexibility in creating custom lengths and row counts. Evaluate current ratings against application loads and verify mating compatibility with corresponding header or receptacle options within the same pitch family.

Headers, Male Pins Part Context

This component belongs to the TMMH series, which specializes in cost-effective, rugged sockets and plugs. The series offers significant design flexibility through its FleXYZ™ technology, allowing engineers to customize connector lengths and configurations. It is widely used in industries requiring reliable, high-performance interconnects in limited spaces.

Headers, Male Pins Replacement Considerations

Compatible substitutes include other 2.00 mm pitch board-to-board connectors from Samtec such as the TMM or TMMH series variants. Ensure replacement parts maintain identical pitch, contact count, and termination type to guarantee mechanical fit and electrical performance.
