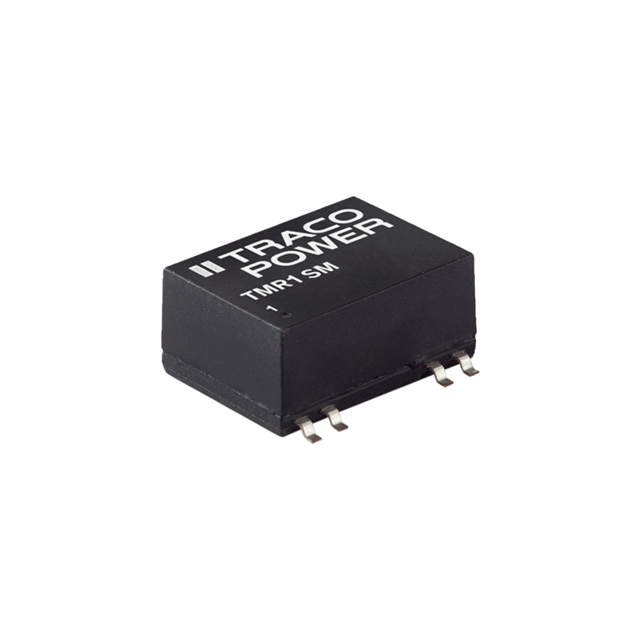

TMR 1-1212SM

TMR 1-1212SM is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Traco Power. Its product description is DC DC CONVERTER 12V 1W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for TMR 1-1212SM

• Description：DC DC CONVERTER 12V 1W
• Series：TMR 1SM (1W)
• Mfr：Traco Power
• Package：Tube
• Type：Isolated Module
• Number of Outputs：1
• Voltage - Input (Min)：9V
• Voltage - Input (Max)：18V
• Voltage - Output 1：12V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：83mA
• Power (Watts)：1 W
• Voltage - Isolation：1.5 kV
• Applications：ITE (Commercial)
• Features：Remote On/Off, OCP, SCP
• Operating Temperature：-40°C ~ 82°C (With Derating)
• Efficiency：79%
• Mounting Type：Surface Mount
• Package / Case：14-SMD Module, 7 Leads
• Size / Dimension：0.74" L x 0.54" W x 0.34" H (18.9mm x 13.7mm x 8.7mm)
• Supplier Device Package：Module
• Control Features：-
• Approval Agency：CB, CSA
• Standard Number：-

DC DC Converters datasheet and documents for TMR 1-1212SM
