TRA6927M3NWN-001

Antennas RF Overview

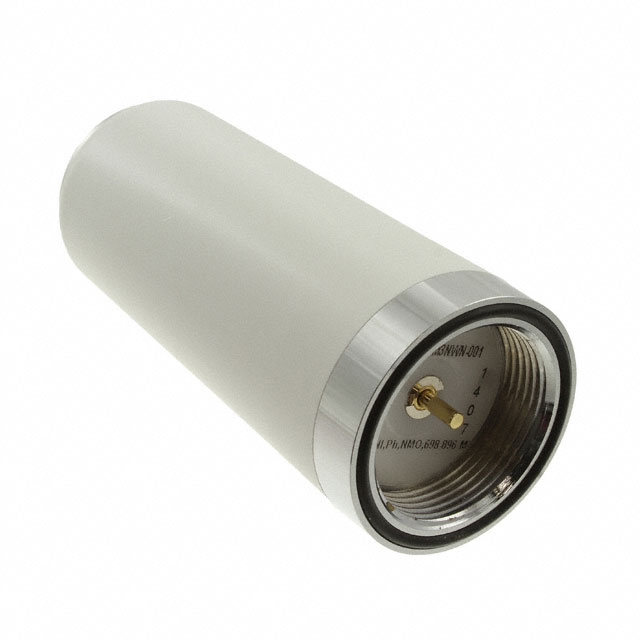

The TRA6927M3NWN-001 is a multi-band omnidirectional phantom antenna manufactured by TE Connectivity. It operates across the 698–960 MHz and 1700–2700 MHz frequency ranges, supporting GSM, LTE, and WiMax applications. The unit features an NMO mount base and a white dome design. Key electrical specifications include a 50 Ohm impedance, a maximum power handling of 100W, and a typical gain of 2.9 dBi. The antenna is rated for an operating temperature range of -40°C to +85°C.

Antennas RF Feature Summary

• Supports multiple wireless standards including GSM, LTE, and WiMax across dual frequency bands.
• Utilizes a phantom antenna design that eliminates the requirement for a metal ground plane.
• Constructed with a durable white dome housing suitable for base mounting via NMO interface.

Antennas RF Applications

• Public safety communication systems
• Transportation network infrastructure
• Internet of Things (IoT) deployments

Antennas RF Procurement Notes

Verify the specific part number suffix against official TE Connectivity documentation to ensure correct configuration. Confirm that the application environment remains within the specified -40°C to +85°C operating temperature limits. Ensure the installation site provides adequate clearance for the omnidirectional radiation pattern. Validate that the connected radio equipment supports the 698–960 MHz and 1700–2700 MHz bands without exceeding the 100W power rating.

Antennas RF Selection Notes

Select this model when a ground-plane-free solution is required for multi-band coverage in public safety or IoT sectors. The NMO mount facilitates standard vehicle or pole installation. Consider the 2.9 dBi gain for general coverage needs rather than long-range directional links. Verify compatibility with existing RF cabling and connectors before integration into the system architecture.

Antennas RF Part Context

This component belongs to the TRA6927 series of multi-band antennas from TE Connectivity. It is designed for robust data communication in demanding environments. The product line emphasizes ease of installation through the phantom design, reducing structural requirements compared to traditional ground-dependent antennas.

Antennas RF Replacement Considerations

Consult official TE Connectivity substitution guides for verified alternatives. Cross-reference technical parameters such as impedance, frequency range, and mounting type to ensure functional equivalence. Generic replacements may not support the same multi-band capabilities or phantom design advantages.

Antennas RF FAQ

Does this antenna require a metal ground plane for operation?

No, the TRA6927M3NWN-001 utilizes a phantom antenna design that does not require a metal ground plane.

What is the maximum power handling capacity of this antenna?

The antenna is rated for a maximum power handling of 100 Watts.
