TSM-116-01-L-DV-A-P

Headers, Male Pins Overview

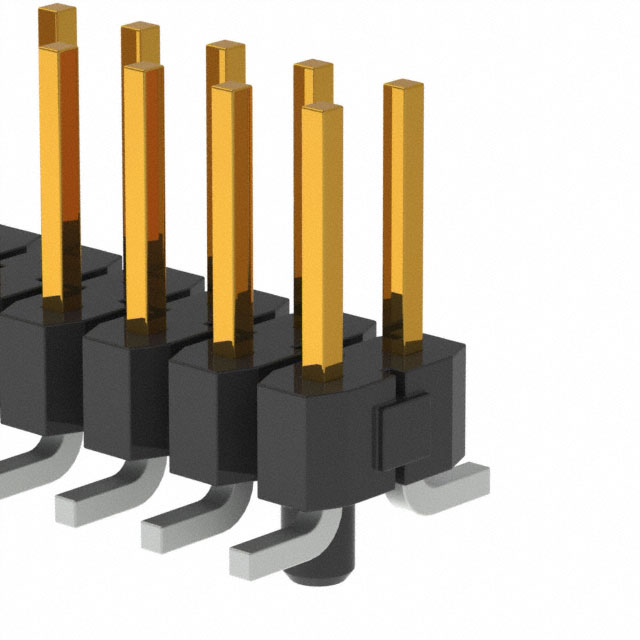

The TSM-116-01-L-DV-A-P is a surface mount terminal strip header manufactured by Samtec. It features a .100 inch (2.54 mm) pitch and provides 32 positions arranged in a dual row configuration. The connector utilizes straight pins with a vertical orientation, designed for direct soldering to printed circuit boards. This component belongs to the Extended Life Product line, indicating enhanced durability and reliability standards suitable for demanding electronic applications.

Headers, Male Pins Feature Summary

• Surface mount design facilitates automated pick-and-place processing
• Square post terminal system ensures high mating cycle performance
• Extended Life Product classification meets severe environment testing

Headers, Male Pins Applications

• High-density board-to-board interconnects
• Automotive electronics assemblies
• Industrial control systems requiring reliable signal transmission

Headers, Male Pins Procurement Notes

Verify the specific suffix codes against official Samtec documentation to confirm pin plating, post height, and termination style. Ensure the selected variant matches the required surface mount profile and alignment features for the target PCB layout. Cross-reference part numbers carefully as minor suffix changes can alter physical dimensions or electrical characteristics significantly.

Headers, Male Pins Selection Notes

Select this component when a robust surface mount header with a standard .100 inch pitch is required. Consider the Extended Life Product designation for applications needing higher durability than standard commercial grade connectors. Evaluate the square post geometry for compatibility with mating socket strips and verify that the vertical orientation fits within the assembly's height constraints.

Headers, Male Pins Part Context

This part belongs to Samtec’s TSM series of .100 inch surface mount terminal strips. The series offers various row configurations and termination options to support diverse PCB mounting needs. As an Extended Life Product, it adheres to stricter environmental and mechanical testing protocols compared to standard commercial headers, ensuring consistent performance over extended operational lifespans.

Headers, Male Pins Replacement Considerations

Consult Samtec’s official substitution guide for verified equivalent parts. Generic alternatives may not match the square post geometry or Extended Life specifications. Verify that any substitute maintains the same pitch, row count, and surface mount termination type to ensure proper mechanical fit and electrical continuity.
