TSM-125-01-L-DV-LC

Headers, Male Pins Overview

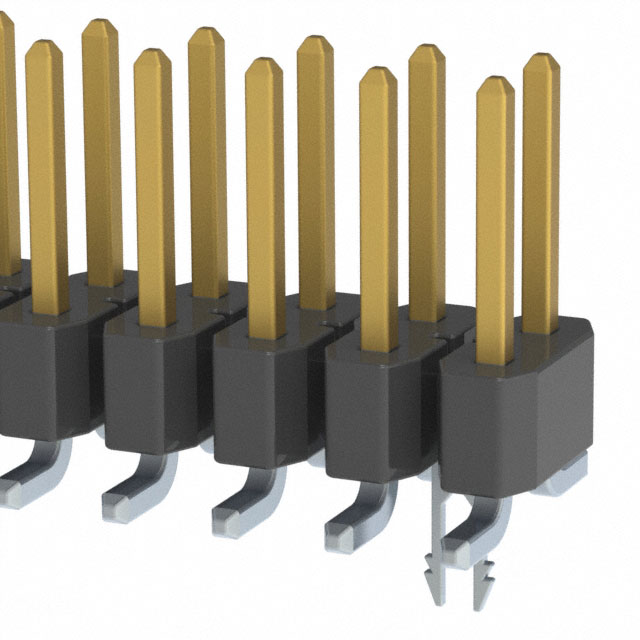

The TSM-125-01-L-DV-LC is a surface mount terminal strip header manufactured by Samtec Inc. It features a 50-position, 2-row configuration with a 0.100 inch (2.54 mm) pitch. The connector utilizes phosphor bronze contacts with gold plating and liquid crystal polymer insulation rated UL94 V-0. Designed for board-to-board or cable applications, it operates within a temperature range of -55°C to +125°C and supports mating cycles up to 2,500 when paired with compatible sockets.

Headers, Male Pins Feature Summary

• Features .025 inch square posts designed for high-density arrays and flexible stacking solutions
• Includes push-pull locking mechanism to secure connections during operation
• Complies with RoHS3 standards and meets MIL-DTL-55302 testing requirements

Headers, Male Pins Applications

• High-speed board-to-board interconnects requiring up to 8 Gbps performance
• Automotive A-Series product integration
• Severe environment testing applications

Headers, Male Pins Procurement Notes

Verify the specific suffix 'LC' against official Samtec documentation to confirm Extended Life Product status and mating cycle ratings. Ensure compatibility with mating sockets such as SSM or BCS series for optimal performance. Confirm that the gold contact plating thickness meets the required signal integrity specifications for the intended application frequency.

Headers, Male Pins Selection Notes

Select this component for surface mount applications requiring right-angle or straight termination options. Consider the 0.100 inch pitch for standard spacing needs and the LCP insulator material for thermal stability. Evaluate the 50-position count against PCB layout constraints and ensure the operating temperature range aligns with the environmental conditions of the final assembly.

Headers, Male Pins Part Context

This part belongs to the TSM series of .100 inch surface mount terminal strips. It is categorized under rectangular connectors and pin headers. The series offers various row options and post heights to accommodate different mating requirements. As an Extended Life Product, it provides enhanced durability compared to standard industrial connectors.

Headers, Male Pins Replacement Considerations

TSM-125-01-T-DH-LC

Headers, Male Pins FAQ

What is the maximum mating cycle rating for this connector?

The TSM-125-01-L-DV-LC achieves high mating cycles, specifically up to 2,500 cycles when mated with compatible sockets like SSM or BCS.

Does this component meet military testing standards?

Yes, the TSM series meets or exceeds MIL-DTL-55302 testing requirements, ensuring reliability in severe environments.
