TSW-103-15-S-S

Headers, Male Pins Overview

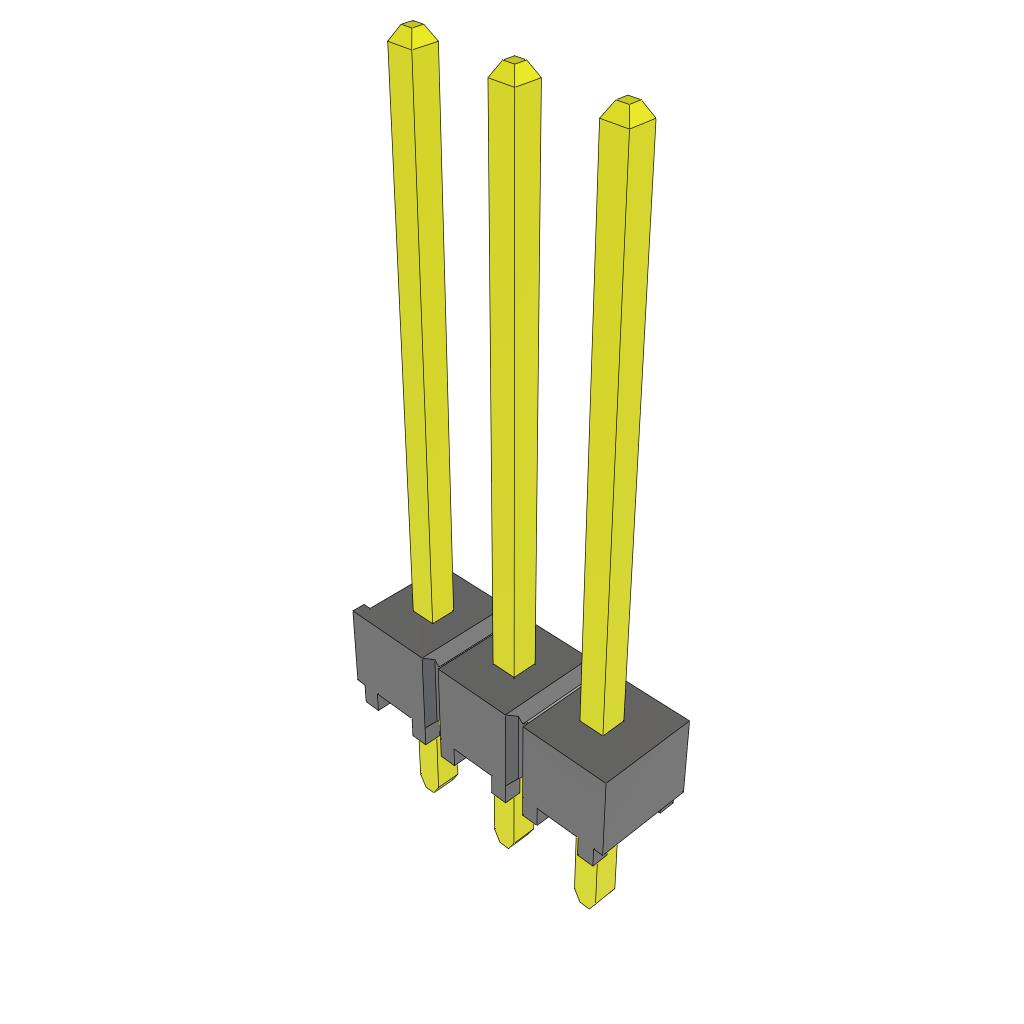

Samtec TSW-103-15-S-S is a single-row, three-position through-hole pin header with a 2.54 mm (0.1 in) pitch. It features phosphor bronze contacts with gold plating and a PBT insulator rated UL 94 V-0. The connector supports a straight mounting angle and solder pin termination. Electrical ratings include current values of 4.3 A to 6.3 A and voltage ratings from 400 VAC to 550 VAC. Operating temperature ranges from -55°C to +125°C. Mating contact length is 20.83 mm (0.82 in), while the solder tail length is 2.79 mm (0.11 in).

Headers, Male Pins Feature Summary

• Gold-plated phosphor bronze contacts ensure reliable signal transmission and corrosion resistance.
• Polybutylene terephthalate (PBT) housing provides structural integrity and flame resistance.
• Straight through-hole design facilitates secure board-to-board or cable connections.

Headers, Male Pins Applications

• Board-to-Board interconnects
• Cable assemblies
• General purpose electronic circuits

Headers, Male Pins Procurement Notes

Verify the specific suffix configuration against official Samtec documentation to confirm terminal dimensions and plating thickness. Ensure compatibility with mating socket strips regarding contact length and retention force. Confirm RoHS compliance status for the specific manufacturing batch before integration into regulated assemblies.

Headers, Male Pins Selection Notes

Select this component for standard 0.100 inch pitch applications requiring robust mechanical stability. The long mating length accommodates thicker PCB stacks or cable harnesses. Verify that the 2.79 mm solder tail fits within the available board clearance and reflow profile requirements.

Headers, Male Pins Part Context

The TSW series represents Samtec's classic line of flexible stacking solutions. This specific model belongs to the standard TSW family, offering high-density connectivity options. It serves as a fundamental building block for industrial and commercial electronics requiring reliable interconnection.

Headers, Male Pins Replacement Considerations

Direct substitutes within the same series include TSW-103-07-SS-S and TSW-103-23-L-S. These alternatives share identical pitch and position counts but differ in terminal length and plating specifications. Cross-reference datasheets to ensure mechanical fit.
