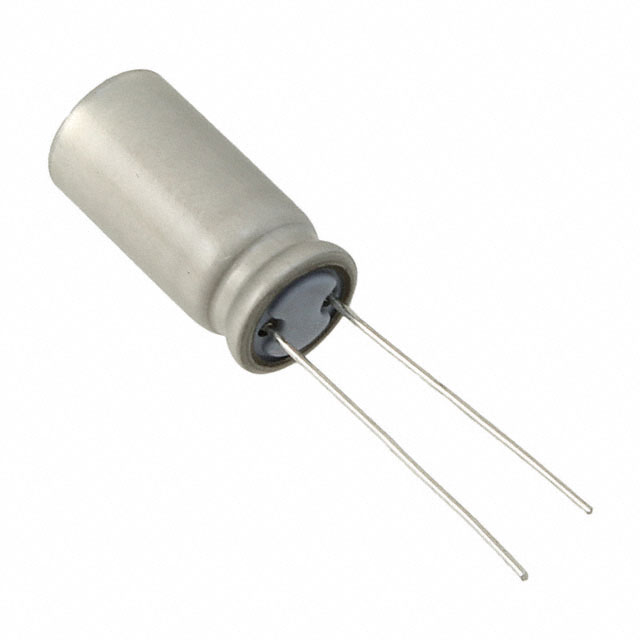

UBX2A560MPL1TD

UBX2A560MPL1TD is listed in the Aluminum Electrolytic Capacitors range at ChipApex. The manufacturer field lists Nichicon. Its product description is CAP ALUM 56UF 20% 100V RADIAL TH. Review the specifications below when checking this part for your BOM.

Aluminum Electrolytic Capacitors specifications for UBX2A560MPL1TD

• Description：CAP ALUM 56UF 20% 100V RADIAL TH
• Series：UBX
• Mfr：Nichicon
• Package：Cut Tape (CT),Tape & Box (TB)
• Capacitance：56 µF
• Tolerance：±20%
• Voltage - Rated：100 V
• ESR (Equivalent Series Resistance)：-
• Lifetime @ Temp.：1000 Hrs @ 150°C
• Operating Temperature：-55°C ~ 150°C
• Polarization：Polar
• Ratings：-
• Applications：Automotive
• Ripple Current @ Low Frequency：320 mA @ 120 Hz
• Ripple Current @ High Frequency：640 mA @ 100 kHz
• Lead Spacing：0.197" (5.00mm)
• Size / Dimension：0.394" Dia (10.00mm)
• Height - Seated (Max)：0.846" (21.50mm)
• Surface Mount Land Size：-
• Mounting Type：Through Hole
• Package / Case：Radial, Can
• Impedance：-

Aluminum Electrolytic Capacitors datasheet and documents for UBX2A560MPL1TD
