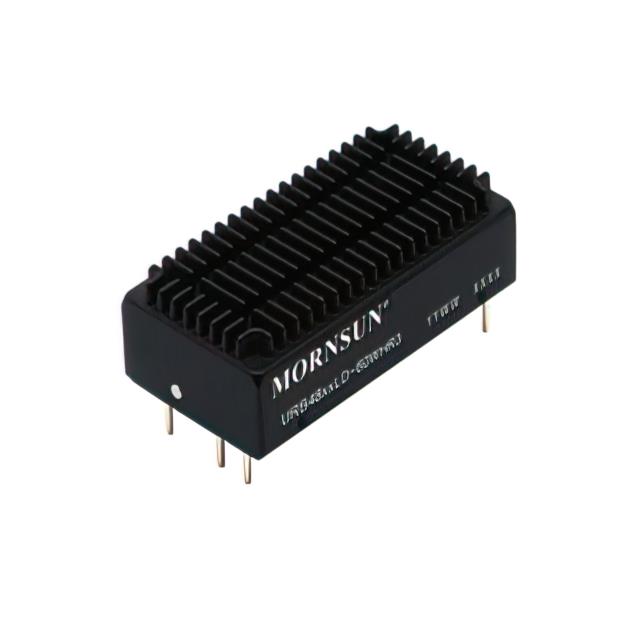

URB4805LD-60WHR3

URB4805LD-60WHR3 is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Mornsun America, LLC. Its product description is ISOLATED MODULE DC DC CONVERTER1. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for URB4805LD-60WHR3

• Description：ISOLATED MODULE DC DC CONVERTER1
• Series：URB48_LD-60WHR3 (60W)
• Mfr：Mornsun America, LLC
• Package：Tube
• Type：Isolated Module
• Number of Outputs：1
• Voltage - Input (Min)：18V
• Voltage - Input (Max)：75V
• Voltage - Output 1：5V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：12A
• Power (Watts)：60 W
• Voltage - Isolation：1.6 kV
• Applications：ITE (Commercial)
• Features：Adjustable Output, Heat Sink
• Operating Temperature：-40°C ~ 105°C (With Derating)
• Efficiency：92.50%
• Mounting Type：Through Hole
• Package / Case：6-DIP Module
• Size / Dimension：2.02" L x 1.03" W x 0.65" H (51.4mm x 26.2mm x 16.5mm)
• Supplier Device Package：-
• Control Features：-
• Approval Agency：-
• Standard Number：-

DC DC Converters datasheet and documents for URB4805LD-60WHR3
