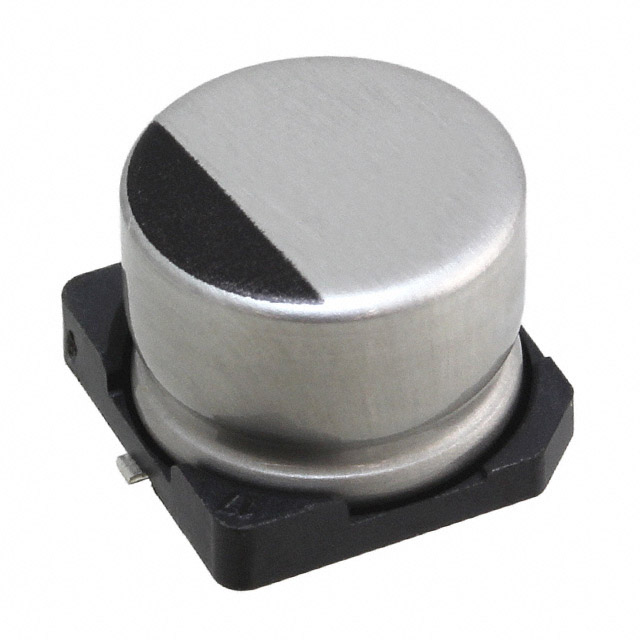

Aluminum Electrolytic Capacitors UWH1H220MCL1GS product image

UWH1H220MCL1GS

$0.69

Description：CAP ALUM 22UF 20% 50V SMD
Series：UWH
Mfr：Nichicon
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:26f174c74cd5 Category: Aluminum Electrolytic Capacitors Brand: Nichicon

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

UWH1H220MCL1GS is listed in the Aluminum Electrolytic Capacitors range at ChipApex. The manufacturer field lists Nichicon. Its product description is CAP ALUM 22UF 20% 50V SMD. Review the specifications below when checking this part for your BOM.

Aluminum Electrolytic Capacitors specifications for UWH1H220MCL1GS

Description：CAP ALUM 22UF 20% 50V SMD
Series：UWH
Mfr：Nichicon
Package：Tape & Reel (TR),Cut Tape (CT)
Capacitance：22 µF
Tolerance：±20%
Voltage - Rated：50 V
ESR (Equivalent Series Resistance)：-
Lifetime @ Temp.：1000 Hrs @ 125°C
Operating Temperature：-40°C ~ 125°C
Polarization：Polar
Ratings：AEC-Q200
Applications：General Purpose
Ripple Current @ Low Frequency：38 mA @ 120 Hz
Ripple Current @ High Frequency：57 mA @ 10 kHz
Lead Spacing：-
Size / Dimension：0.315" Dia (8.00mm)
Height - Seated (Max)：0.244" (6.20mm)
Surface Mount Land Size：0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting Type：Surface Mount
Package / Case：Radial, Can - SMD
Impedance：-

Aluminum Electrolytic Capacitors datasheet and documents for UWH1H220MCL1GS

UWH1H220MCL1GS
