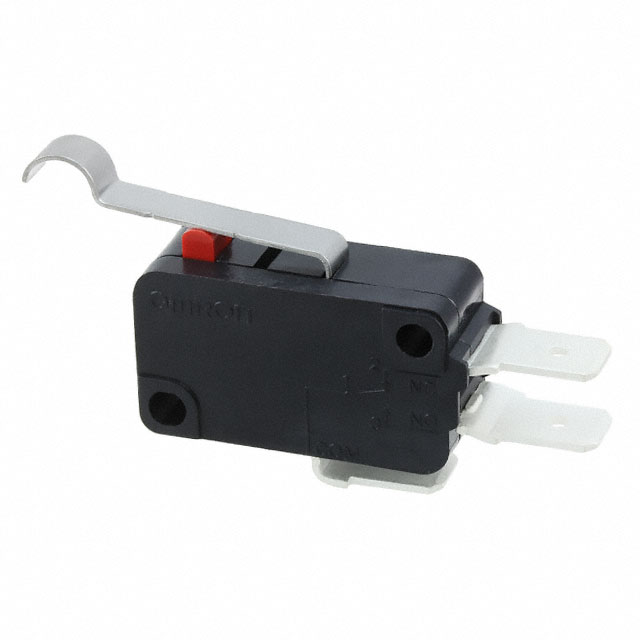

V-10G4-1C5-K

V-10G4-1C5-K is listed in the Limit Switches range at ChipApex. The manufacturer field lists Omron Electronics Inc-EMC Div. Its product description is SWITCH SNAP ACTION SPDT 10A 250V. Review the specifications below when checking this part for your BOM.

Limit Switches specifications for V-10G4-1C5-K

• Description：SWITCH SNAP ACTION SPDT 10A 250V
• Series：V
• Mfr：Omron Electronics Inc-EMC Div
• Package：Bulk
• Circuit：SPDT
• Switch Function：On-Mom
• Current Rating (Amps)：10A (AC), 100mA (DC)
• Voltage Rating - AC：250 V
• Actuator Type：Lever, Simulated Roller
• Mounting Type：Chassis Mount
• Termination Style：Quick Connect - 0.250" (6.3mm)
• Ingress Protection：IP40
• Features：-
• Operating Force：125gf
• Release Force：14gf
• Operating Position：0.738" (18.7mm)
• Pretravel：0.157" (4.0mm)
• Differential Travel：0.060" (1.5mm)
• Overtravel：0.062" (1.6mm)
• Operating Temperature：-25°C ~ 80°C
• Voltage Rating - DC：125 V

Limit Switches datasheet and documents for V-10G4-1C5-K
