VLMO233U1AA-GS08

LED Indication - Discrete Overview

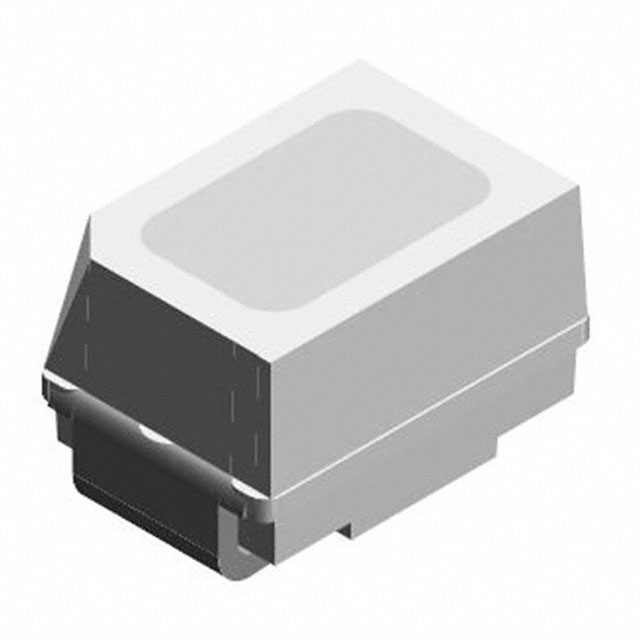

The VLMO233U1AA-GS08 is a surface-mount orange LED from the MiniLED series, manufactured by Vishay Semiconductor Opto Division. It features a J-leaded 2-SMD package with dimensions of 2.20mm length, 1.40mm width, and a maximum height of 1.40mm. The lens measures 1.50mm x 0.90mm with a rectangular flat-top style. Key electrical parameters include a typical forward voltage of 2.1V and a test current of 20mA. Optical characteristics specify a dominant wavelength of 605nm, a peak wavelength of 611nm, and an intensity of 760mcd at a viewing angle of 120 degrees.

LED Indication - Discrete Feature Summary

• MiniLED form factor with J-lead SMD configuration for compact board space utilization
• High luminous intensity output suitable for distinct visual indication requirements
• Rectangular flat-top lens design providing consistent optical performance

LED Indication - Discrete Applications

• Electronic device status indicators
• Control panel signal lights
• Instrumentation front panels

LED Indication - Discrete Procurement Notes

Verify component authenticity through authorized distributors or direct manufacturer channels. Confirm RoHS3 compliance and MSL level 2A handling requirements during storage and assembly. Ensure ordering suffix matches specific packaging needs such as tape and reel quantities. Cross-reference datasheet revisions to confirm material consistency before finalizing procurement orders.

LED Indication - Discrete Selection Notes

Select this component when high brightness in a small footprint is required. The 2.1V forward voltage suits low-power logic interfaces. Verify thermal management capabilities for continuous operation. Compare against alternative colors if visibility standards differ. Ensure PCB land pattern matches the 2-SMD J-lead geometry for proper solder joint formation.

LED Indication - Discrete Part Context

This part belongs to Vishay's MiniLED family, designed for applications demanding high reliability in limited spaces. The series offers various color options and intensities while maintaining standardized mechanical footprints. It supports automated pick-and-place processes due to its tape and reel availability.

LED Indication - Discrete Replacement Considerations

VLMK23P2R1-GS08 is documented as a parameter-equivalent substitute within the same manufacturer portfolio.
