VS-1N3624R

Single Diodes Overview

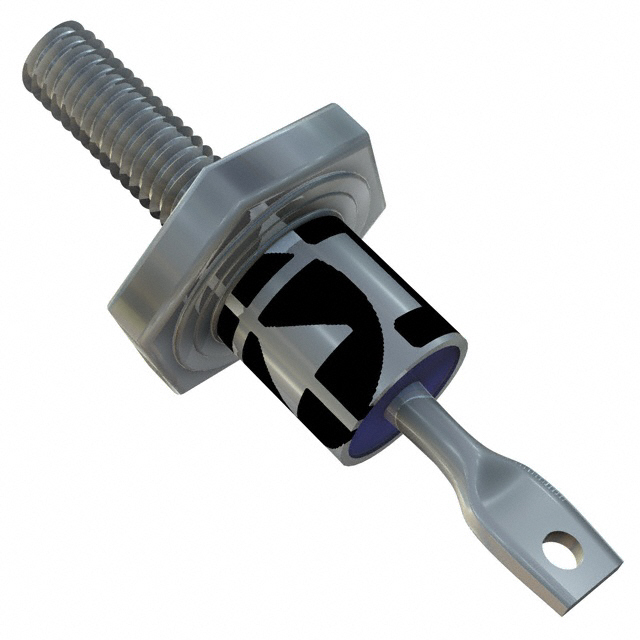

The VS-1N3624R is a medium power silicon rectifier diode manufactured by Vishay General Semiconductor - Diodes Division. It features a maximum average forward current of 12 A at a case temperature of 150 °C and offers a maximum repetitive peak reverse voltage range from 50 V to 1000 V, with the specific 700 V rating for this part number. The device utilizes a DO-203AA (DO-4) stud mount package and supports an operating junction temperature range of -65 °C to +200 °C.

Single Diodes Feature Summary

• High surge capability with defined IFSM and I2t ratings
• Low thermal impedance for efficient heat dissipation
• High temperature rating supporting extended operational ranges

Single Diodes Applications

• Industrial power supply rectification
• Battery charging systems
• Welding equipment power stages

Single Diodes Procurement Notes

Verify the specific voltage rating required for the application against the datasheet table, as the series spans multiple voltages. Confirm that the mounting hardware meets the specified torque requirements to ensure proper thermal contact and mechanical stability. Check for compliance with MIL-S-19500/260 if military-grade qualification is necessary for the project.

Single Diodes Selection Notes

Select this component when high current handling and robust surge tolerance are required in a stud-mount configuration. Ensure the cooling solution maintains the case temperature within limits to support the rated 12 A continuous current. Consider the thermal resistance values provided for accurate junction temperature calculations under varying load conditions.

Single Diodes Part Context

This component belongs to the VS-1N1...A and VS-1N36..A series of medium power silicon rectifiers. These devices are designed for general-purpose rectification applications requiring high reliability and durability in demanding electrical environments.

Single Diodes Replacement Considerations

For anode-to-case configurations, add 'R' to the basic part number. Verify equivalent specifications from other manufacturers regarding thermal resistance and package dimensions before substitution.
