W1P35X8W04-H100D3B0A

$3.09

Description：ANTENNA ASSY, WLAN1 04 100
Series：W
Mfr：KYOCERA AVX
Package：Box

SKU:4bde0c354b44 Category: RF Antennas Brand: KYOCERA AVX

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

W1P35X8W04-H100D3B0A is listed in the Antennas RF range at ChipApex. The manufacturer field lists KYOCERA AVX. Its product description is ANTENNA ASSY, WLAN1 04 100. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for W1P35X8W04-H100D3B0A

Description：ANTENNA ASSY, WLAN1 04 100
Series：W
Mfr：KYOCERA AVX
Package：Box
RF Family/Standard：802.15.4, Bluetooth, WiFi
Frequency Group：UHF (2GHz ~ 3GHz)
Frequency (Center/Band)：2.44GHz
Frequency Range：2.4GHz ~ 2.48GHz
Antenna Type：PCB Trace
Number of Bands：1
VSWR：-
Return Loss：-15dB
Gain：2.8dBi
Features：Cable - 100mm
Termination：I-PEX MHF4
Ingress Protection：-
Grade：-
Qualification：-
Mounting Type：Adhesive
Height (Max)：0.016" (0.40mm)
Applications：Bluetooth, Wi-Fi, WLAN, Zigbee™
Power - Max：-

Antennas RF datasheet and documents for W1P35X8W04-H100D3B0A

W1P35X8W04-H100D3B0A

Antennas RF Overview

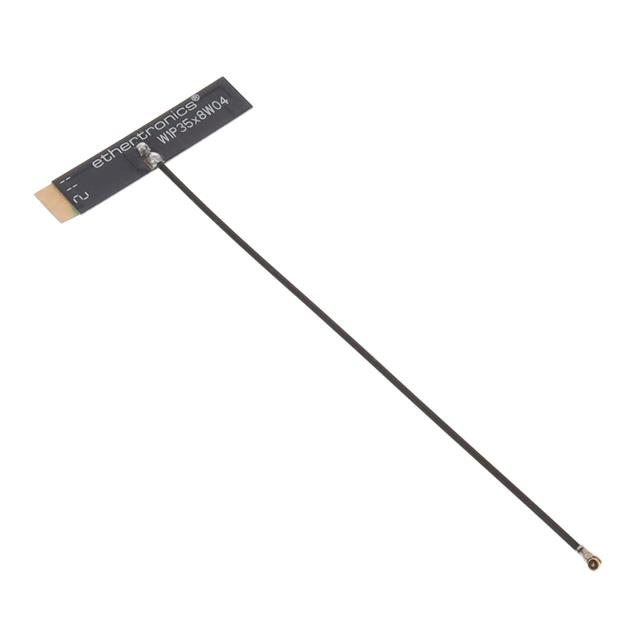

The W1P35X8W04-H100D3B0A is a passive PCB antenna designed for 2.4 GHz to 2.48 GHz operations, supporting WiFi, WLAN, Bluetooth, and Zigbee protocols. It features an I-PEX MHF4 connector with a 100 mm cable length. The unit has dimensions of 35.2 x 8.5 x 0.40 mm and operates at 50 ohms impedance. Gain is rated at 2.8 dBi with omnidirectional radiation patterns.

Antennas RF Feature Summary

Supports multiple wireless protocols including WiFi, Bluetooth, and Zigbee within the 2.4 GHz band.
Utilizes an I-PEX MHF4 connector interface for reliable signal transmission.
Features a compact form factor suitable for space-constrained embedded applications.

Antennas RF Applications

Wireless LAN modules
Bluetooth-enabled IoT devices
Zigbee sensor networks

Antennas RF Procurement Notes

Verify component authenticity through authorized Kyocera AVX channels. Confirm RoHS compliance status prior to integration. Ensure connector polarity matches system requirements. Validate cable length specifications against design constraints. Check for end-of-life notifications before finalizing procurement plans.

Antennas RF Selection Notes

Select this model when integrating 2.4 GHz wireless connectivity into compact designs. The 100 mm cable provides flexibility for antenna placement away from interference sources. The MHF4 interface ensures compatibility with standard RF connectors. Consider physical dimensions during layout planning.

Antennas RF Part Context

This component belongs to the W1P series of embedded antennas from Kyocera AVX. These products are engineered for high reliability in consumer and industrial electronics. The series offers various cable lengths and connector options to suit different assembly needs.

Antennas RF Replacement Considerations

The W1P35X8W04-U100D3B0A serves as a direct substitute using UFL connectors instead of MHF4. Verify mechanical fit and connector compatibility before swapping. Electrical performance remains consistent across these variants.
