W2P15X7F04-U100D3B0T

Antennas RF Overview

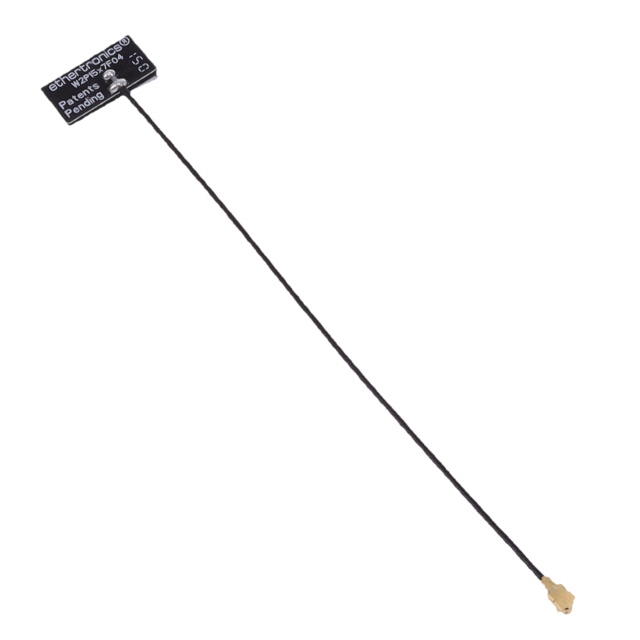

The W2P15X7F04-U100D3B0T is an embedded WiFi antenna manufactured by KYOCERA AVX, designed for operation within the 5GHz and 6GHz frequency bands. It features a PCB-mounted configuration with a 100mm cable terminating in an MHF connector. The component supports wireless standards including WiFi, Bluetooth, WLAN, and Zigbee. Key electrical specifications include a center frequency of 5.5GHz and a band center of 6.525GHz. The antenna operates in the SHF range, providing connectivity solutions for compact electronic devices requiring reliable RF performance in the specified high-frequency spectrum.

Antennas RF Feature Summary

• Embedded PCB design suitable for space-constrained applications
• Integrated 100mm cable with MHF connector interface
• Supports multiple wireless protocols including WiFi and Bluetooth

Antennas RF Applications

• Smartphones and Tablet PCs
• Wearable Devices
• Communications Modules

Antennas RF Procurement Notes

Verify the specific connector type against your schematic, as datasheets may list UFL or MHF variants within the same family. Confirm RoHS compliance status for regulatory adherence. Check current availability as stock levels fluctuate. Ensure the operating temperature range meets your environmental requirements. Validate impedance matching to the host circuitry before integration.

Antennas RF Selection Notes

Select this model when a low-profile embedded solution is required for 5/6GHz wireless modules. Consider the cable length and connector polarity during layout planning. Evaluate the gain and radiation pattern relative to device placement. Compare against other W2 series parts if different mounting styles are needed. Ensure the component fits within the mechanical envelope of the target enclosure.

Antennas RF Part Context

This part belongs to the KYOCERA AVX W2 Family of PCB antennas. The series provides various configurations for WiFi and Bluetooth applications. Components in this line are engineered for consumer electronics and mobile devices. They offer consistent performance across standard wireless frequencies. The family includes options with different connectors and cable lengths.

Antennas RF Replacement Considerations

Check for direct substitutes within the W2P15X7 series from KYOCERA AVX. Verify pinout and connector compatibility before swapping. Review mechanical dimensions to ensure fitment. Assess electrical parameter equivalence for signal integrity.
