WCP3015W08-H100D3B0A

Antennas RF Overview

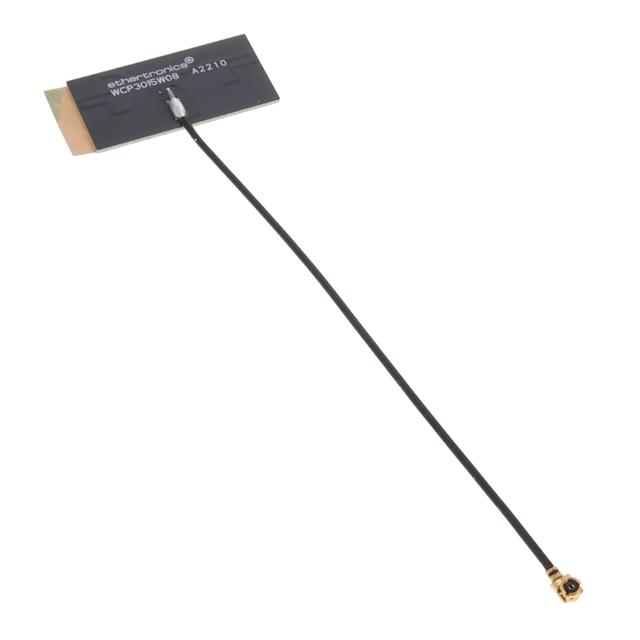

The WCP3015W08-H100D3B0A is a Wi-Fi antenna assembly manufactured by KYOCERA AVX. It operates within the 2.4 GHz to 2.48 GHz frequency range with a nominal impedance of 50 Ohms. The unit features an adhesive mount installation style and utilizes an MHF connector for interface termination. Physical dimensions are specified as 30 mm in length, 15 mm in width, and 0.8 mm in height. The assembly includes a cable length of 100 mm.

Antennas RF Feature Summary

• Designed for embedded Wi-Fi applications supporting 2.4 GHz bands
• Utilizes adhesive mounting for secure attachment without soldering
• Integrates an MHF connector interface for system connectivity

Antennas RF Applications

• Wi-Fi enabled consumer electronics
• IoT devices requiring wireless connectivity
• Embedded communication modules

Antennas RF Procurement Notes

Verify the specific model designation against official KYOCERA AVX documentation to ensure compatibility with your design requirements. Confirm that the MHF connector type and cable length meet your system integration needs. Check current availability status as supply conditions may vary. Ensure adherence to RoHS compliance standards if required by your project specifications.

Antennas RF Selection Notes

Select this component when a pre-assembled Wi-Fi solution with adhesive mounting is preferred over direct PCB trace antennas. Consider the physical footprint of 30x15 mm and the 100 mm cable length during layout planning. Ensure the host device provides adequate clearance for the antenna element and cable routing. Verify that the operating temperature range aligns with the intended environmental conditions.

Antennas RF Part Context

This part belongs to the KYOCERA AVX portfolio of RF antennas designed for wireless communication systems. The manufacturer specializes in advanced electronic components for various industries including mobile devices and industrial equipment. This specific model represents a ready-to-use antenna assembly rather than a bare PCB component.

Antennas RF Replacement Considerations

Consult official KYOCERA AVX substitution guides for verified alternative part numbers. Generic substitutes may not match the electrical characteristics or mechanical form factor. Cross-reference connector types and cable lengths before implementation.
