WP7113SEC

LED Indication - Discrete Overview

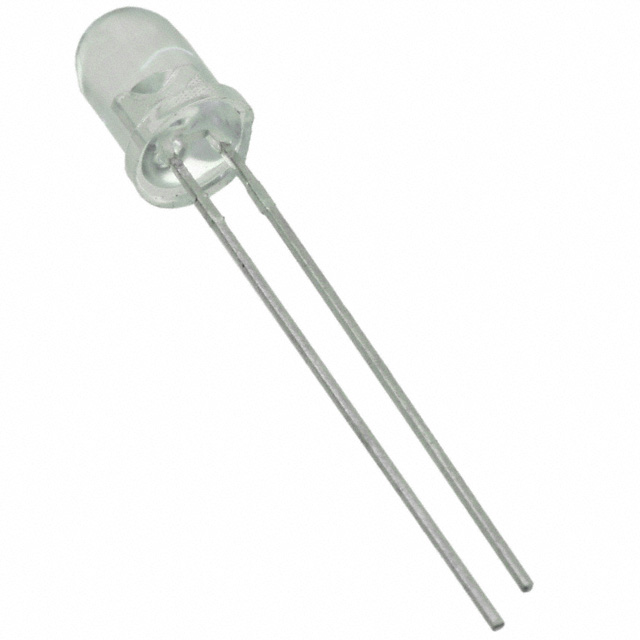

The WP7113SEC is a single-color orange LED from Kingbright, designed for through-hole mounting in the T-1 3/4 (5 mm) package. It features a water-clear dome lens and emits light at a wavelength of 605 nm with an intensity of 4200 mcd. The component operates with a forward current of 20 mA and a forward voltage of 2 V, resulting in a power rating of 75 mW. It provides a viewing angle of 20 degrees and functions within a temperature range of -40 C to +85 C.

LED Indication - Discrete Feature Summary

• Emits orange illumination with a peak wavelength of 605 nm
• Features a water-clear dome lens for focused light output
• Designed for reliable through-hole PCB integration

LED Indication - Discrete Applications

• Panel status indicators
• Instrumentation displays
• Control board signaling

LED Indication - Discrete Procurement Notes

Verify the exact suffix against official Kingbright documentation to confirm optical characteristics. Ensure the procurement specification matches the required 605 nm wavelength and 4200 mcd intensity. Confirm RoHS compliance status via the manufacturer datasheet before finalizing supply chain agreements.

LED Indication - Discrete Selection Notes

Select this component when a standard 5 mm orange indicator is required for general-purpose electronic equipment. Consider the 20-degree viewing angle and specific luminous intensity requirements. Evaluate thermal management needs based on the 75 mW power rating and operating temperature limits.

LED Indication - Discrete Part Context

This part belongs to the Kingbright WP7113 series of standard through-hole LEDs. The series offers various color options within the T-1 3/4 form factor. The WP7113SEC specifically addresses applications requiring distinct orange visibility with moderate brightness levels.

LED Indication - Discrete Replacement Considerations

Cross-reference with other Kingbright 5 mm orange LEDs such as WP7113SEC/E or WP7113SEC/J if different intensity or wavelength specifications are needed. Verify pin compatibility and mechanical dimensions before substituting.
